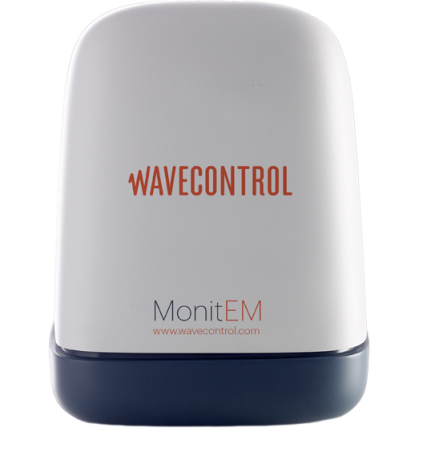

Wavecontrol MONITEM EMF Monitoring System (10 Hz – 40 GHz)

Sensor type: Isotropic, RMS

Measurement: Simultaneous 3-axis measurement

Probe system: Interchangeable, 10 Hz to 40 GHz

Sampling frequency: 500 ms

Averaging: 6-minute sliding window

Data retention period:

Online: from 1 to 60 minutes

Offline: configurable from 1 second to 60 minutes

Memory: EEPROM + MicroSD card

Wireless communications:

GPRS modem

GPRS/3G (online modem)

Modem radiation rejection

Programmable alarms: Field level, low battery, hibernation, opening, calibration, communication error, probe error, temperature

Operating log: Temperature, communications, power supply, operating modes, etc.

Power supply: AC 110–220V; 12V DC; Solar panel; Battery

Battery life: > 10 days (without sun)

Watchdog: Smart power control unit

Dimensions: 253 × 292 × 385 mm

Weight: 3.6 kg (including solar panel)

Environmental protection: IP66

Installation kits: Wall, mast or tripod

GPS: High-sensitivity WGS84 device (built-in)
