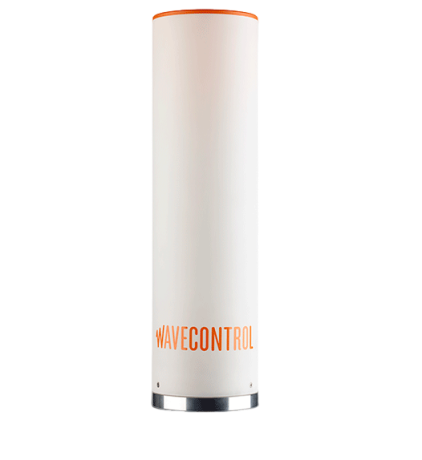

Wavecontrol MonitEM-Lab Monitoring of Electromagnetic Fields (100 kHz - 40 GHz, AC 110–220V)

Sensor type: Isotropic, RMS

Measurement: Simultaneous 3-axis measurement

Probe system: Interchangeable, 100 kHz to 40 GHz

Sampling frequency: 500 ms

Averaging: 6-minute or custom sliding window

Data retention period:

Online: 1 minute to 60 minutes

Offline: 1 second to 60 minutes

Memory: EEPROM + MicroSD card

Communications: Ethernet

Operating log: Temperature, communications, power supply, operating modes, etc.

Power supply: AC 110–220V

Watchdog: Smart power control unit with ON/OFF button

Dimensions: 445 × Ø120 mm (17.5 × Ø4.72 in.)

Weight: 2.4 kg

Environmental protection: Not yet available

Installation kits: Wall, mast or tripod mounting

Alarms: Audible and visual alarm (configurable). Sound can be muted via external switch.

Control centre (optional)

Platform: Server-based with internet/intranet access

Administration interface: Web browser

Public interface: Web browser

Remote alarms: Field level, calibration, communication error, probe error, temperature

Customization: Language, client logo, general information

Reports: Automatic PDF/CSV reports sent via email

Compatibility: Data management for MonitEM units and portable SMP2 device

Datasheet
