Wavecontrol MapEM Electromagnetic maps

Applications: Measurement of EMF radiation in: industry, telecommunications, powerline, defense, medical
Sensor type: Isotropic, RMS
Frequency range (customizable):
-High frequencies: 100 kHz – 8 GHz
-Mobile telephones: GSM, UMTS, LTE
Measurement range: 0.2 – 100 V/m
Sampling frequency: 1 measurement per second
Calibration: By a laboratory with ISO 17025 accreditation
Operating temperature: - 30ºC to + 80ºC
Data transfer: External USB connector
Memory: Micro SD (1 GByte) + Eeprom
Power supply: 12 Volt DC connected to vehicle and internal battery
Software: Compatible with Windows O.S.
Vehicle speed: 0 a 60 km/h (recommended)
Results: Display software / Results database
Display software: Display interface that superimposes measurement levels on the map
Coding: Editable scale: by colour and values
Data downloading: Georeferenced data in Access or CSV format
Exportation: Level map images in JPG format
Dimensions: 70 x 40 x 8 cm
Weight: 8 Kg
Environmental protection: IP66

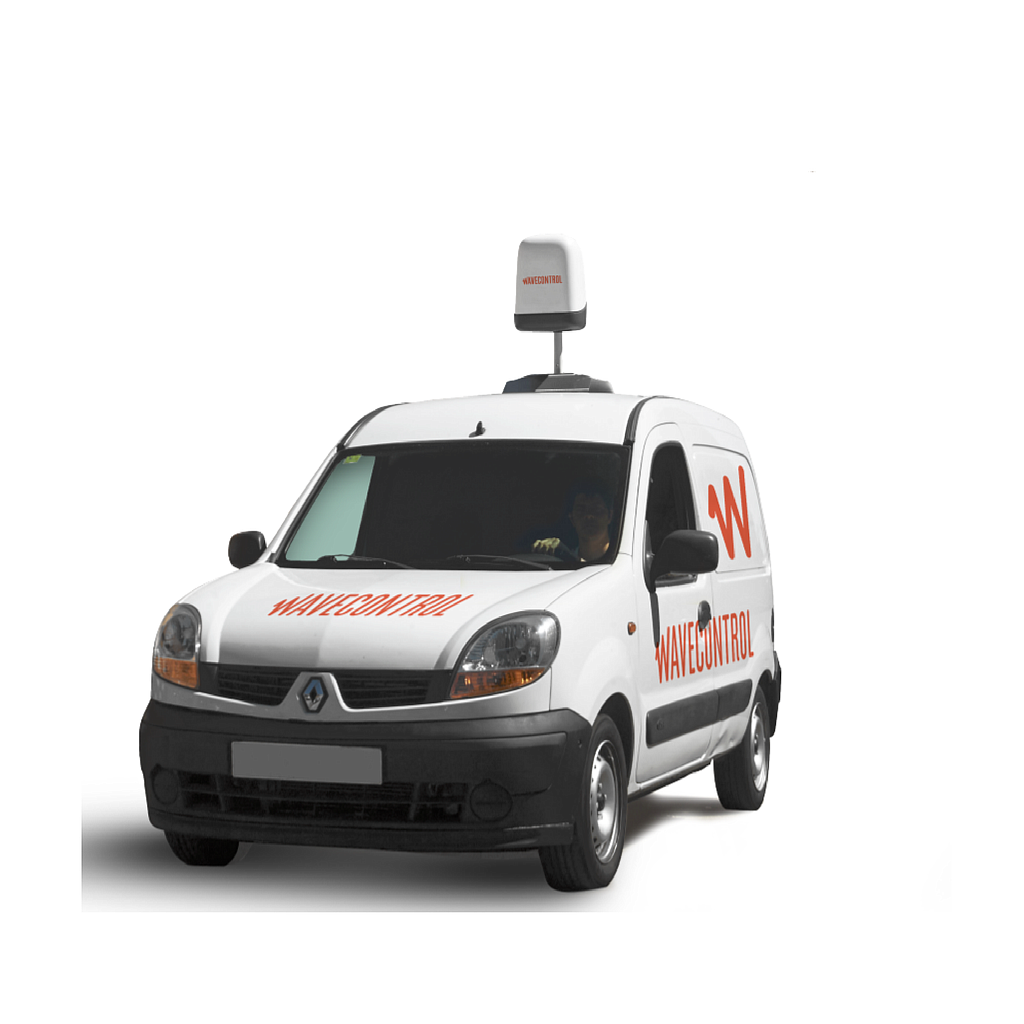

Installation kit: Magnetic base ; Easily installation and removal on vehicle roof
