- Input:
Pulse input
Line driver input
(2 channel input available)
- Output:
Analog output
BCD output (Open collector NPN/PNP)
RS-232C
RS-485 (Modbus RTU)
Comparator output (Open collector NPN/PNP,R elay output)
- Power:
AC100～240V
DC12V
DC24～48V
- Operating temperature/humidity: -5～+50℃ 35～85%RH
- Dielectric strength: AC3000V

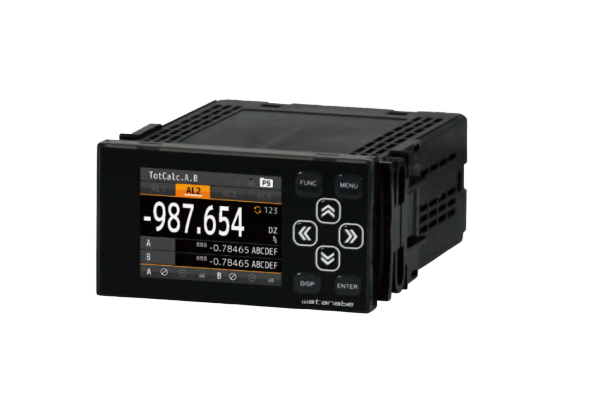

- Display: 2.4 inch TFT full-color LCD
- Panel size: 52(H)×96(W)mm
- External Dimensions: 52(H)×96(W)×145(D)mm
- Weight: Approx. 350g
- Standards & Approvals:
EN61326-1
EN61010-1
EN50581
