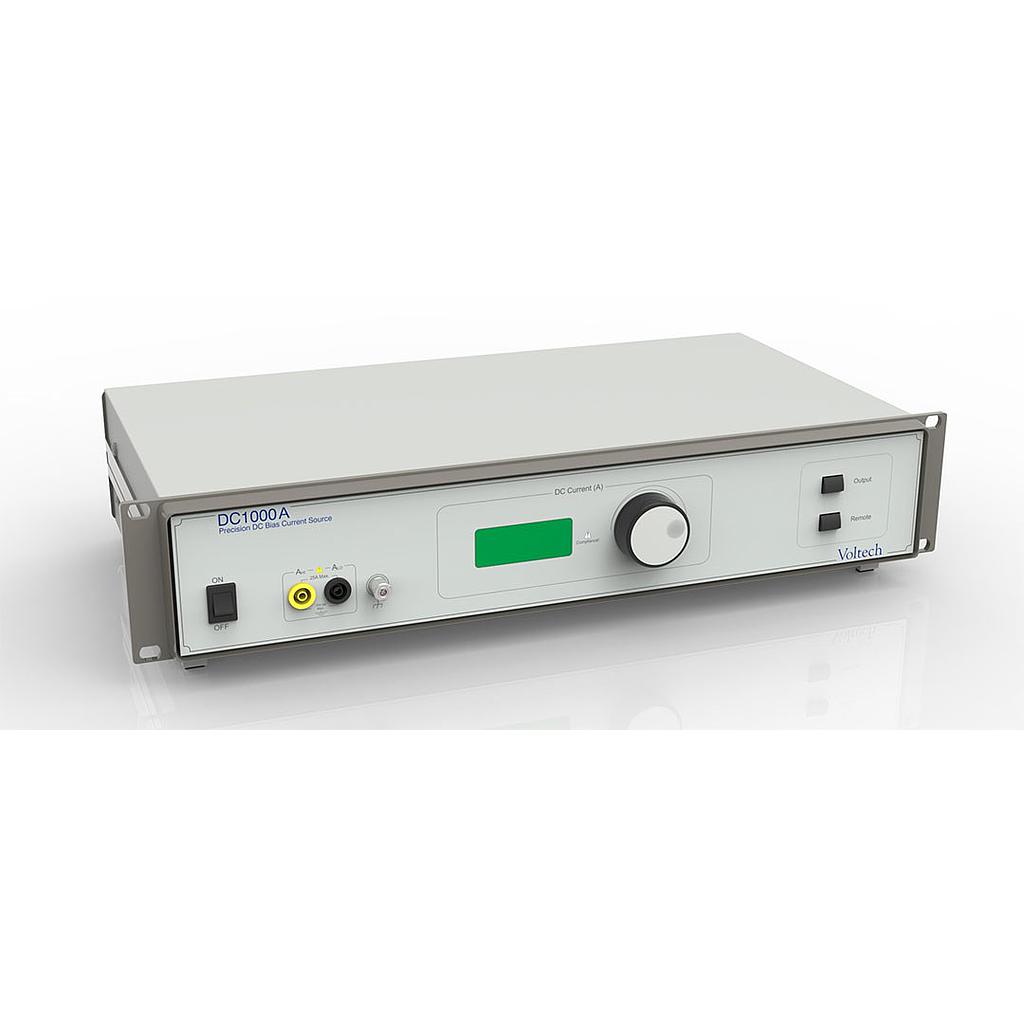

Voltech DC1000A Bias Current Source

DC Bias: Current OutputCurrent0 to 25 Amps DC in 10 mA steps.

Current when stacked250 Amps DC with 10 x DC1000A

DC Bias: Current OutputAccuracy of DC Current±0.5% of reading ±25 mA.

Compliance voltage5 Volts

Effect on the LCR measurementTypically <10uA per Volt, for 20 Hz-10 MHz LCR conditions. See User Manual for full error specification

Environmental Specifications :Temperature +5°to + 40°C operating

Humidity : 10% to 80% RH non-condensing

Power Supply to Case : 2.9 kV DC for 1 minute

Power Requirement : 100-125 V / 200-250 V AC 48-65 Hz. 400 VA Max.

Fuse :3.15 AT

Mechanical : H x W x L88 mm x 475 mm x 255 mm

Weight : 10 kg

Mounting : Bench or 19" Rack mounting

Interfaces : RS232Remote control

Safety Interlock : Connection to operator safety system if required. Override plug Supplied.

Protection : Open circuit : Warning LED.

Over temperature : Auto-Shutdown and warning

Back -EMF (over voltage) : protects DC1000A and LCR meter

Variable Speed Cooling Fan
