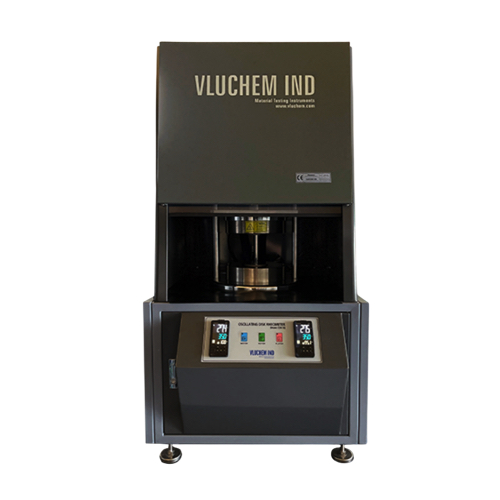

Vluchem Ind ODR-10 Oscillating Disk Rheometer (0~ 200 dNm; 4.5 bar / 60 Psi)

International Standard: ASTM D 2084; ISO 3417; KS M 6687

Motor: Induction Motor

Rotor: Biconical Disk

Oscillation frequenc: 1.67Hz

Oscillation angle: 1°, 3°, 5° Mechanically adjustable

Protection for operator: Before test chamber closing

Temp. shield screen moving: Before test chamber closing

Test chamber moving: By Pneumatic

Rotor Motor Platen operation: available by hardware & software

Temperature control: available by hardware & software

Temperature range: microprocessor controlled RT ~ 220°C

Temp. Sensor Type: PT 100 Ω

Torque range: 0~ 200 dNm

Calibration: Calibration jig

Data:

Torque [dNm, lbf.in] Temperature [°C]

MH, ML Ts1, Ts2, Tc10(N), Tc50(N), Tc90(N)

Automatic test results pass/fail function

Trend graphs

Tolerance limits by time and torque

Data excel export function, Average, S-Dev

ERP system upload - option

Pneumatics: min 4.5 bar/60 Psi

Electrical: 200~230V, 3A, single phase, 50Hz/60Hz

Emergency Button

Dimension: W615 X D685 X H1200 mm

Weight: 160 kgs
