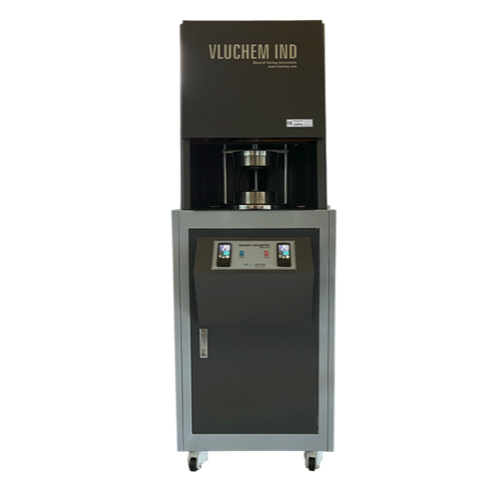

Vluchem Ind MV-10 Mooney Viscometer (0 ~ 200 MU)

International Standard: ASTM D 1646; ISO 289; KS M ISO 289-1, -2, -4

Motor: Induction Motor

Rotor: Disk-shaped rotor; Large and small

Rotor Speed: 2 rpm

Protection for operator: Before test chamber closing

Temp. shield screen moving: Before test chamber closing

Test chamber moving: By Pneumatic

Motor Platen operation: available by hardware & software

Temperature control: available by hardware & software

Temperature range: microprocessor controlled RT ~ 220°C

Temp. Sensor Type: PT 100 Ω

Torque range: 0~ 200 MU

Test modes: viscosity; scorch; stress relaxation; Stop T5 and T3 mode

Calibration: Weight and software

Data: Initial viscosity, ML[S]1+4[N]; Scorch viscosity and cure times; T5(3), T35(18) and T30(15), Tmin; [Multi] Stress relaxation; Data files convert to excel files; Trend graphs; Tolerance limits box by time and torque; Average, S-Dev, ERP system upload

Pneumatics: min 4.5 bar/60 Psi

Electrical: 200~230V, 3A, single phase

Emergency Button

Dimension: W615 X D685 X H1643 mm

Weight: 210 kgs  
