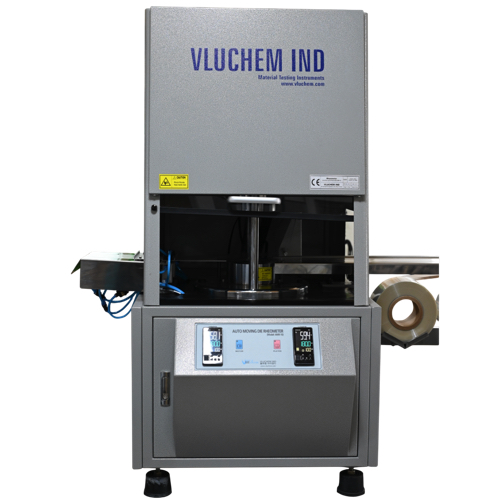

Vluchem Ind AMR-10 Auto Moving Die Rheometer (0~ 200 dNm; 4.5 bar / 60 Psi)

International Standard: ASTM D 5289; ISO 6502; KS M ISO 6502

Motor: Induction Motor

Die configuration: Biconical, closed die system, sealed

Oscillation frequency: 1.67Hz

Oscillation angle: 0.5°[Option]1°, 3°, 5°; mechanically adjustable

Protection for operator: Before test chamber closing

Temp. shield screen moving: Before test chamber closing

Test chamber moving: By Pneumatic

Motor Platen operation: available by hardware & software

Temperature control: available by hardware & software

Temperature range: microprocessor controlled RT ~ 220°C

Temp. Sensor Type: PT 100 Ω

Torque range: 0~ 200 dNm

Calibration: Calibration jig

Data

Torque[dNm, lbf.in]

Temperature [°C]

MH, ML Ts1, Ts2, Tc10(N), Tc50(N), Tc90(N)

Data excel export function,

Trend graphs

Tolerance limits by time and torque

Average, S-Dev

Pneumatics: min 4.5 bar/60 Psi

Electrical: 200~230V, 3A, single phase, 50Hz/60Hz

Emergency Button

Dimension: W1200 X D685 X H1200 mm

Weight: 180 kgs  

Linear Automation: AMR-10 [6 samples]

Feeding Device: AMR-10 [6 samples]
