Hãng sản xuất: Vitrox

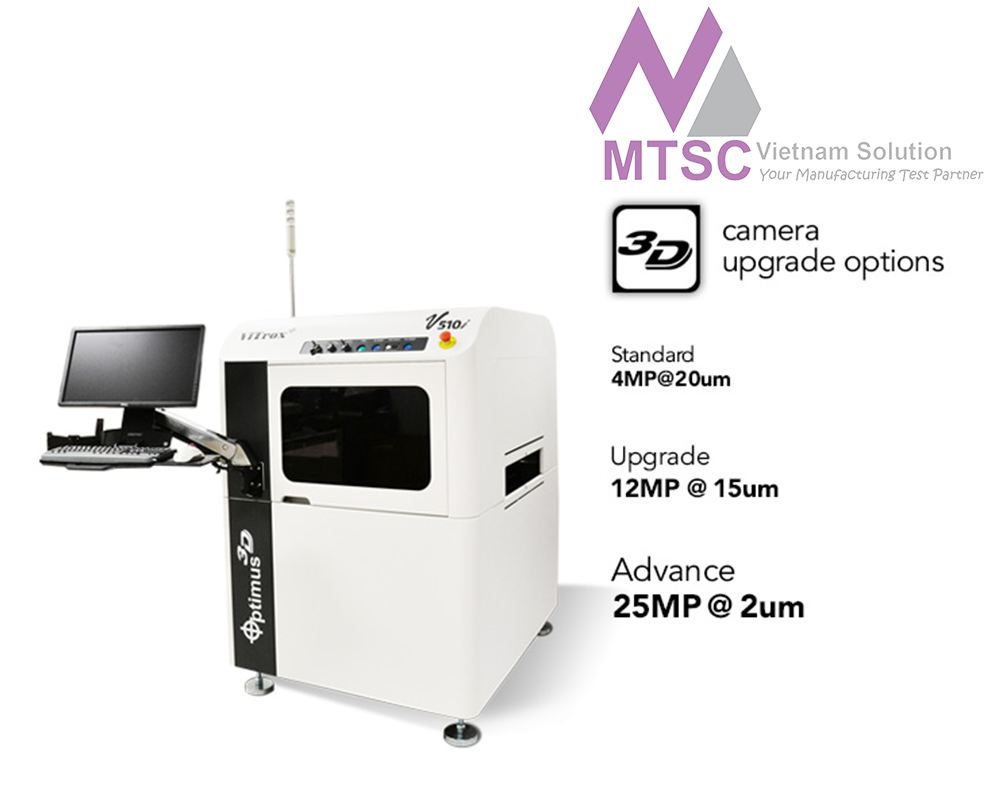

Model: V510i Optimus 3D
Bảo hành: 12 tháng
Manufacturer: Vitrox
Model: V510i Optimus 3D
Warranty: 12 months
A - STANDARD VERSION:
PCB Dimension
Minimum PCB Size(L x W): 50x50mm (2”x2”)
Maximum PCB Size (L x W): 510x510mm (20”x20”)
PCB Thickness: 0.5mm-4mm (0.02”-0.16”)
Maximum PCB Weight: 3kg (6.6lb)
Clearance
Top Side of PCB: 50mm (2”)
Bottom Side of PCB: 70mm (2.76”)
Panel Edge: 3.5mm (0.14”)
Maximum PCB Warpage Compensation: ±5mm (0.2")
PCB Transport Height: 856mm - 965mm (33.7”x38”)
System Hardware
Camera & FOV Size: 4MP Camera Link Camera; 40x40 mm @ 20um resolution
Optical Resolution: Default: 20um telecentric lens*; Option: 11um telecentric lens*
Inspection Speed: 4MP @ 20μm resolution: 22.0 - 37.0cm²/sec
3D Technologies: Phase Shift Profilometry’s (PSP) Methodology with 4-way projectors
Lighting Module: Concurrent Lighting Module
Installation Specification
Width: 1060mm (3.5ft)
Depth: 1352mm (4.4 ft)
Height: 2028mm (6.7ft)
Weight: ~830 kgs
Electrical Supplies: 100-120 V, 16A/200-240V, 8A Single Phase
* Based on system configuration
B - FDL VERSION:
PCB Dimension
Minimum PCB Size (L x W): 50x50mm (2”x2”)
Maximum PCB Size (L x W): DL Equal: 510x235mm (20”x9.25”); Single Lane: 510x420mm (20”x16.5”)
PCB Thickness: 0.5mm-4mm (0.02”-0.16”)
Maximum PCB Weight: 3kg (6.6lb)
Clearance
Top Side of PCB: 50mm (2”)
Bottom Side of PCB: 70mm (2.76”)
Panel Edge: 3.5mm (0.14”)
Maximum PCB Warpage Compensation: ±5mm (0.2")
PCB Transport Height: 856mm - 965mm (33.7”x38”)
System Hardware
Camera & FOV Size: 12MP Coaxpress Camera; 60x45 mm @ 15um resolution
Optical Resolution: Default: 15um telecentric lens*; Option: 13um telecentric lens*
Inspection Speed: 12MP @ 15μm resolution: 45-60cm²/sec
3D Technologies: Phase Shift Profilometry’s (PSP) Methodology with 4-way projectors
Lighting Module: Concurrent Lighting Module
Installation Specification
Width: 1060mm (3.5ft)
Depth: 1352mm (4.4 ft)
Height: 2028mm (6.7ft)
Weight: ~830 kgs
Electrical Supplies: 100-120 V, 16A/200-240V, 8A Single Phase
* Based on system configuration
