Manufacturer: Vitrox
Model: V510i G2
Warranty: 12 months

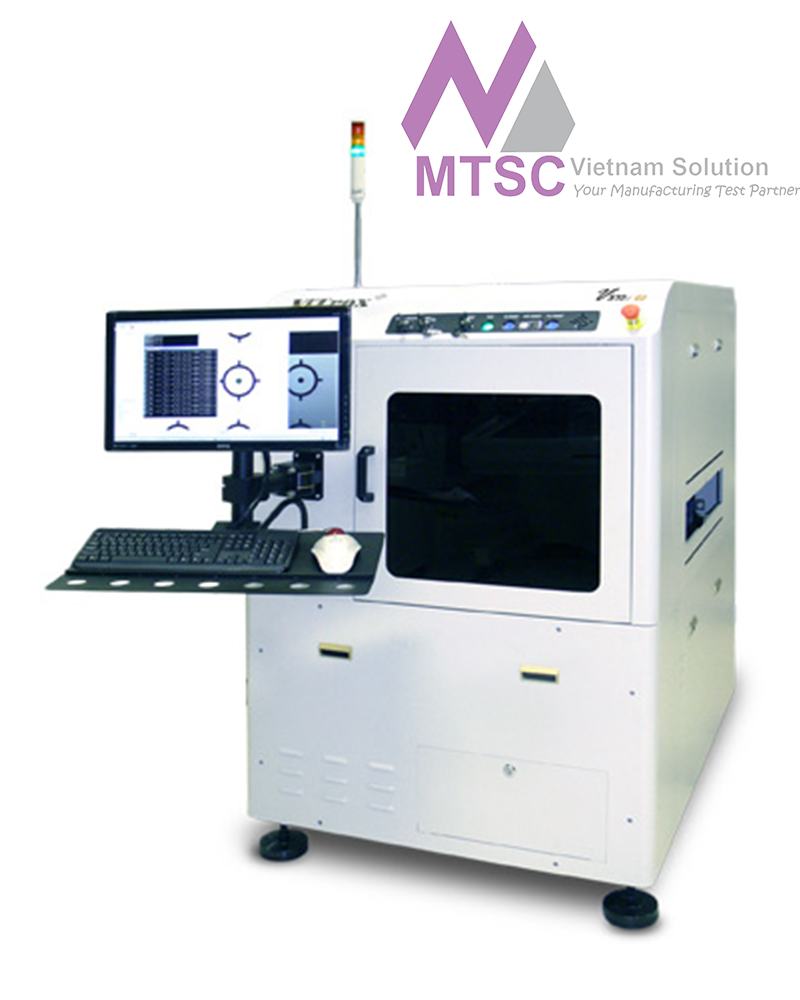

V510i G2 : Advanced Optical Inspection (AOI)
ViTrox has introduced the G2 Series of its V510i Advanced Optical Inspection (AOI) soluton. The V510i G2 Series offers powerful technologies and high throughput productivity for SMT production line.
Board Dimensions
Maximum board size (Single Lane): 510 mm by 510 mm (20 inch by 20 inch)
Minimum board size: 50 mm by 50 mm (2 inch by 2 inch)
Maximum board thickness: 4mm (0.16 inch)
Minimum board thickness: 0.5 mm (0.02 inch)
Board weight: Up to 3 kg (6.6 lb)
Maximum inspected area: 503 mm by 510 mm (19.8 inch by 20 inch)
Clearance
Top side of board: 41 mm (1.61 inch)
Bottom side of board: 50 mm (1.97 inch)
Minimum edge clearance: 3.5 mm (0.14 inch)
Conveyor height range: 870 mm to 965 mm (34 inch to 37.9 inch)
System Dimensions
Footprint: W: 1000 mm (3.3 ft) x D: 1254 mm (4.1 ft) x H: 2010 mm (6.6 ft)
Weight: ~ 750 kgs
Functionality
Post-reflow Inspection: Coverage: Missing, offset, skewed, polarity, billboard, tombstone, lifted/bent leads, excess/insufficient solder, bridging, wrong part, and traceability
Pre-reflow Inspection: Coverage: Missing, offset, skewed, polarity, billboard, wrong part inspection, extra part inspection, and traceability connector, OCV for tall component
Inspection Speed:
Post reflow: 8.5 in^2/sec (55.0 cm^2/sec)
Pre-reflow: 10.0 in^2/sec (65.0 cm^2/sec)
Board level and component level traceability: External barcode reader configured; Camera-read barcodes; OCR capability with batch code logging
Hardware Systems
Camera System:
4 mega pixel digital camera; 19 um per pixel resolution; (scalable from 21 to 8 um for 01005 inspection)
Field of view: 38.5 mm x 38.5 mm
Lighting System: Multiple color, multiple angle, multiple segment LED lighting head, auto calibration
Optional
Field Upgradeable
- Motorized Z Height
- Telecentric Lens 11/20um per pixel
- Conformal Coating Lighting
Non-Field Upgradeable: Flexi Dual Lane (Max. equally width: 235 mm by 510 mm), Lane 1 (Minimum: 50 mm, Maximum: 420 mm), Lane 2 ( Minimum: 50 mm, Maximum: 420 mm)
