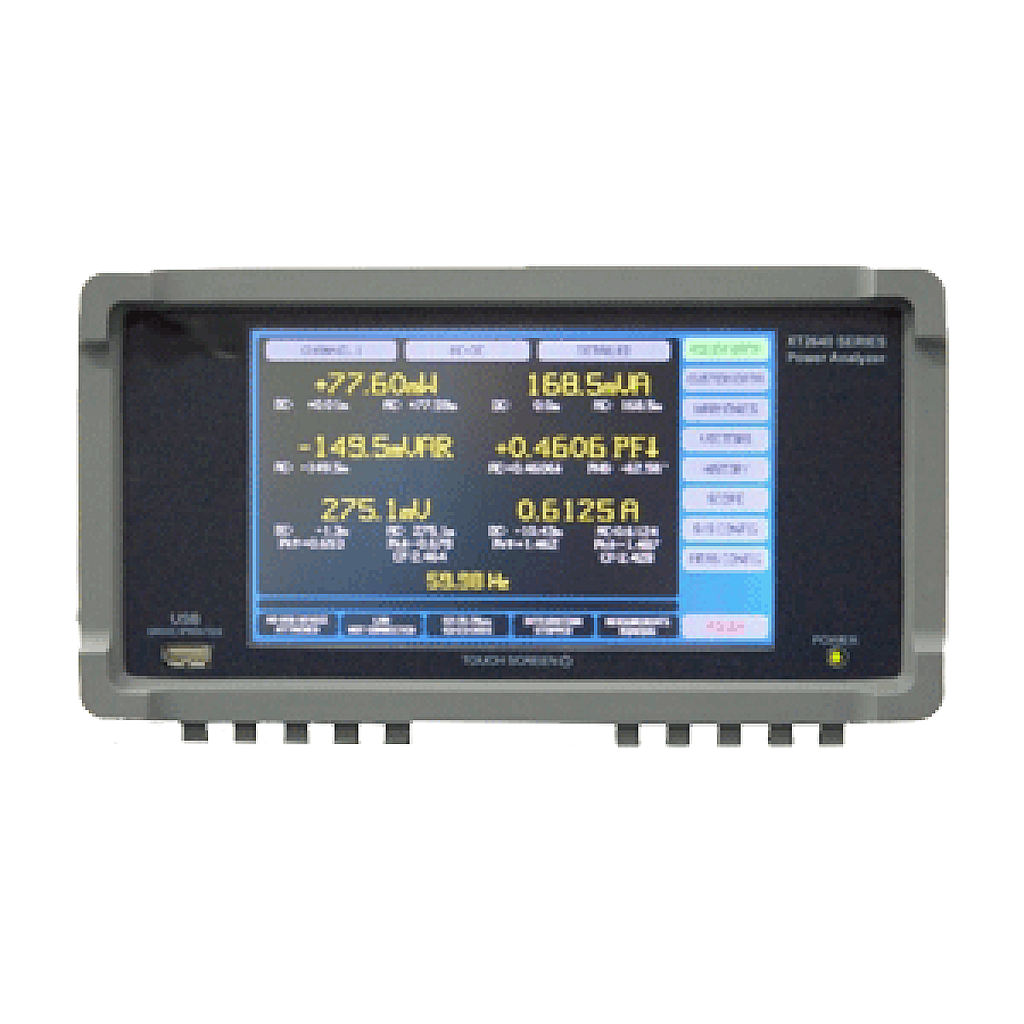

Vitrek XT2640 Multi-Channel Harmonic Power Analyzer (85-264Vrms, 45 to 65Hz)

DIMENSIONAL

Nominal Dimensions: 137mmH x 248mmW x 284mmD (5.4” x 9.75” x 11.2”) with feet not extended

Nominal Weight: 3.2kg (7lb) net, 5kg (11lb) shipping

ENVIRONMENTAL

Storage Environment: -20 to 75°C (-4 to 167°F) (non-condensing)

Operating Environment: 0 to 40°C (32 to 104°F), <85% RH (non-condensing), Pollution Degree 2

Operating Altitude: 0 to 2000m (6560ft) ASL

POWER SUPPLY

Line Power Installation Category II; 85-264Vrms, 45 to 65Hz, 40VA max. Internally fused with a non-user serviceable fuse

Electrical Specifications:

Impedance: >1GΩ || <30pF

Max. Voltage:

4500VPK max without damage

2500VRMS max for <1s without damage

1000VRMS max continuous rated working voltage (CAT I/II)

600VRMS max continuous rated working voltage (CAT III)

300VRMS max continuous rated working voltage (CAT IV)
