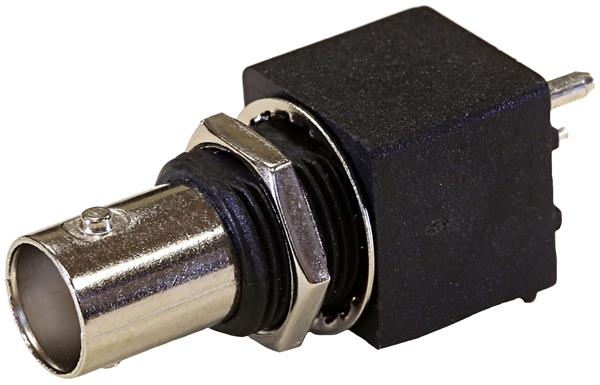

Vitelec / Cinch Connectivity Solutions VBI301-75 PCB Connectors BNC Isolatd Vert PCB Mnt Jck W/Post 75Ohm
Gender: Jack (Socket)
Polarity: Standard
Impedance: 75 Ohms
Isolation: Isolated
RF Series: BNC
Body Style: Straight
Body Finish: Nickel
Orientation: Straight
REACH - SVHC: Details
Body Material: Zinc Alloy
Mating Cycles: 500 Cycles Min
Mounting Style: Bulkhead
Voltage Rating: 500 V
Contact Plating: Gold
Contact Material: Phosphor Bronze
Maximum Frequency: 1 GHz
Termination Style: Solder Pin
Coupling Mechanism: Bayonet
Contact Termination: Solder
Insulation Resistance: 5 GOhms
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 55 C
