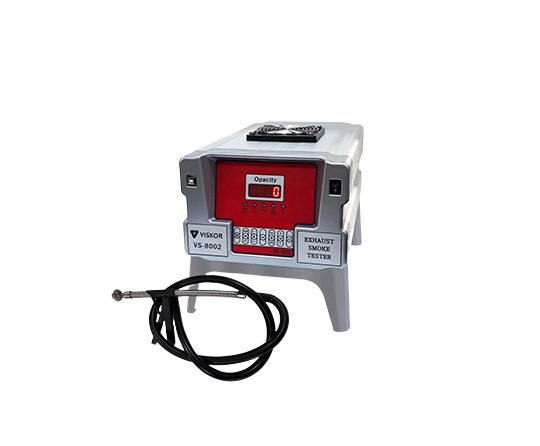

VISKOR VS-8002 Opacity Emission tester (0–9.99m; 0.10%)

Measuring items: Smoke opacity ( %, k [m-1] ), RPM (optional), Oil temperature (optional)

Measurement method: Light extinction method (Partial-flow sampling type)

Light source: Green LED(565nm)

Detector: Photodiode

Length/Diameter (cell): Length: 215 mm(±0.5 mm) / Diameter 21 mm

Measuring range: 0.0 - 99.9% (K: 0 – 9.99 m )

Accuracy: 0.10%

Warm-up time: within 5 minutes

Response time: <0.5±0.015 sec.

Physical response time: 0.2 sec(Periodic response)

Power: AC 110V/220V, 50/60Hz

Temperature: -10 ~ 40℃

Pressure inside the chamber: Below 0.70 kPa

Dimension: 260(W) x 390(D) x 300(H) mm

Weight (Net/Gross): 5.6kg / 10kg

Option: RPM meter, Oil temperature meter, Remote controller, Standard filters
