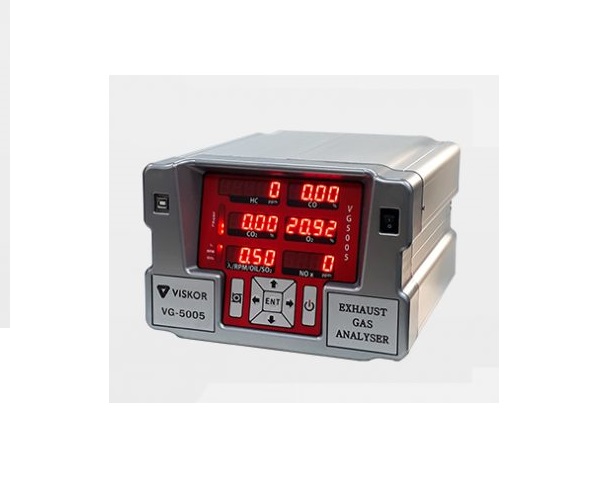

VISKOR VG-5005(5GAS) Automotive Exhaust Gas Analyzer (HC, CO, O2, CO2, Lamda, AFR, NOX)

Measuring gases: CO, HC, CO2, O2, Lambda(Air surplus rate), AFR, NOX

Measuring principles:

CO, HC, CO2: NDIR(Non-Dispersive Infrared Analysis)

O2, NOX: Electrochemical

CO: 0.00 - 10.0% / 0.01%

HC: 0 – 9,999 ppm / 1 ppm

CO2: 0.0 - 20.0 % / 0.1%

O2: 0.00 - 25.00 % / 0.01 %

NOX(optional): 0 - 5,000 ppm / 1 ppm

λ (Lamda): 0 - 2.000 / 0.001

AFR: 0.0 - 99.0 % / 0.1 %

Repetition rate: Less than 2% FS

Response time: < 10 seconds

Preheat time: < 5 minutes

Flow rate: 1.8 L/min

Power: AC 220V, 50/60Hz

Calibration: Automatic zero calibration / Span calibration

Dimensions: 260(W) x 300(D) x 180(H) mm

Weight: 3.0 kg

Standard accessories: Probe, Probe hose, Power cord, RS232 communication cable

Options: RPM and OIL temperature meter
