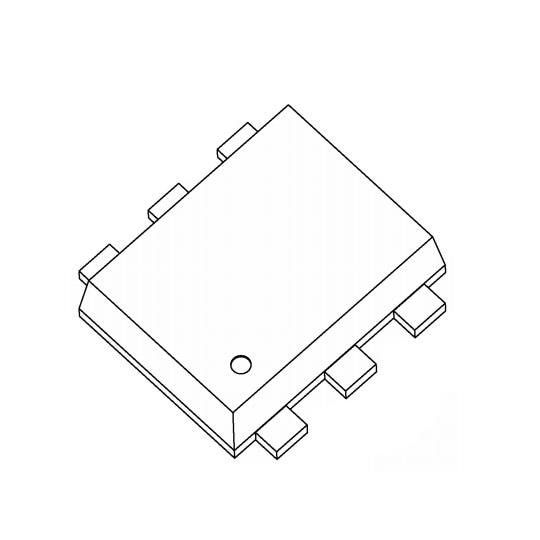

Vishay Siliconix DG9421EDV-T1-GE3 Analog Switch ICs CMOS Analog Switch Low Volt TSSOP-6

Supply Type: Single Supply, Dual Supply

Unit Weight: 152.395 mg

Configuration: 1 x SPST

On Time - Max: 49 ns

Mounting Style: SMD/SMT

Off Time - Max: 59 ns

Number of Channels: 1 Channel

On Resistance - Max: 3.4 Ohms

Supply Current - Max: 1 uA

Supply Voltage - Max: 16 V

Supply Voltage - Min: 3 V

Pd - Power Dissipation: 570 mW

Switch Continuous Current: 50 mA

Maximum Dual Supply Voltage: +/- 8 V

Minimum Dual Supply Voltage: +/- 3 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
