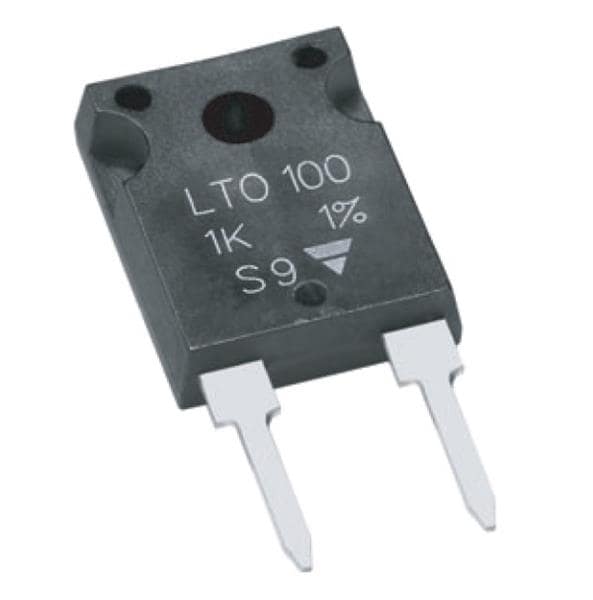

Vishay Sfernice LTO100F120R0FTE3 Power Resistor, Thick Film Technology LTO 100 F 120U 1% TU30 e3
ManufacturerVishay Sfernice(View more products from this manufacturer)
ModelLTO100F120R0FTE3
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 5 mm
Height: 20.7 mm
Length: 15.76 mm
Features: Non-Inductive Resistors
Tolerance: 1 %
Resistance: 120 Ohms
Technology: Thick Film
Unit Weight: 3.500 g
Lead Spacing: 10.16 mm
Power Rating: 100 W
Lead Diameter: 1.5 mm
Mounting Style: PCB Mount
Voltage Rating: 500 V
Termination Style: Radial
Temperature Coefficient: 200 PPM / C
Maximum Operating Temperature: + 175 C
Minimum Operating Temperature: - 55 C
