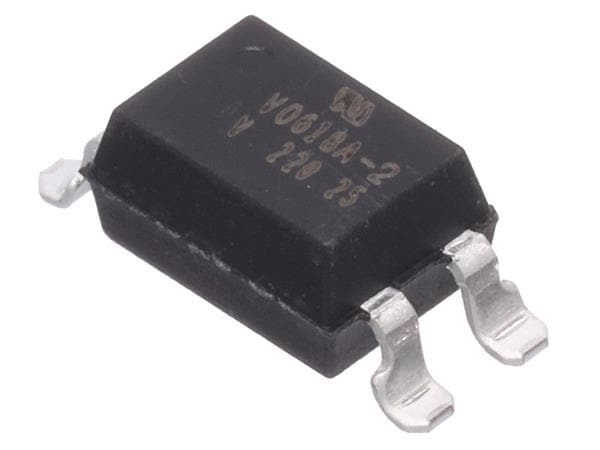

Vishay General Semiconductor VO618A-2X009T Transistor Output Optocouplers SMD-4 OPTOCPL 63-125% CTR,VDE

Fall Time: 14 us

Rise Time: 3 us

Output Type: NPN Phototransistor

Unit Weight: 2.442 g

Mounting Style: SMD/SMT

Isolation Voltage: 5300 Vrms

Number of Channels: 1 Channel

If - Forward Current: 60 mA

Vf - Forward Voltage: 1.65 V

Vr - Reverse Voltage: 6 V

Current Transfer Ratio: 63 %

Pd - Power Dissipation: 200 mW

Maximum Collector Current: 50 mA

Current Transfer Ratio - Max: 125 %

Current Transfer Ratio - Min: 63 %

Maximum Operating Temperature: + 110 C

Minimum Operating Temperature: - 55 C

Maximum Collector Emitter Voltage: 80 V

Maximum Collector Emitter Saturation Voltage: 400 mV
