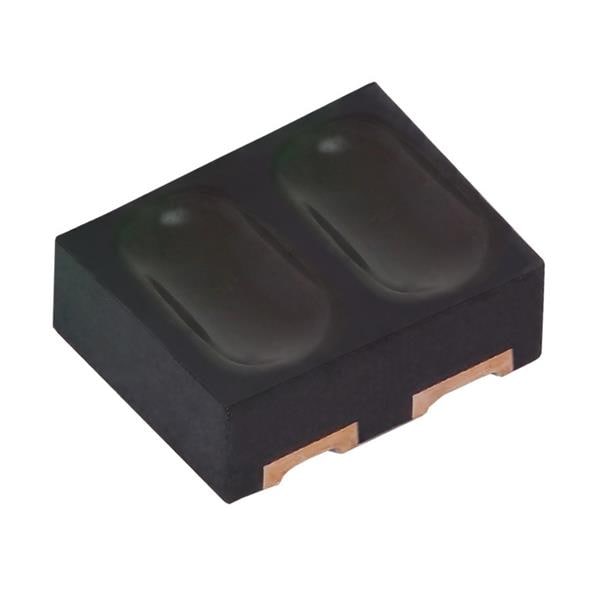

Vishay General Semiconductor VCNT2020 Optical Switches, Reflective, Phototransistor Output Ref Optical Sensor Transtr Output 940nm

Fall Time: 15 ns

Rise Time: 10 ns

Wavelength: 940 nm

Output Type: Phototransistor

Unit Weight: 665.649 mg

Mounting Style: SMD/SMT

Sensing Method: Reflective

Sensing Distance: 0.2 mm to 2.5 mm

Number of Channels: 1 Channel

If - Forward Current: 20 mA

Vf - Forward Voltage: 1.25 V

Vr - Reverse Voltage: 5 V

Maximum Collector Current: 20 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 25 C

Collector- Emitter Voltage VCEO Max: 20 V
