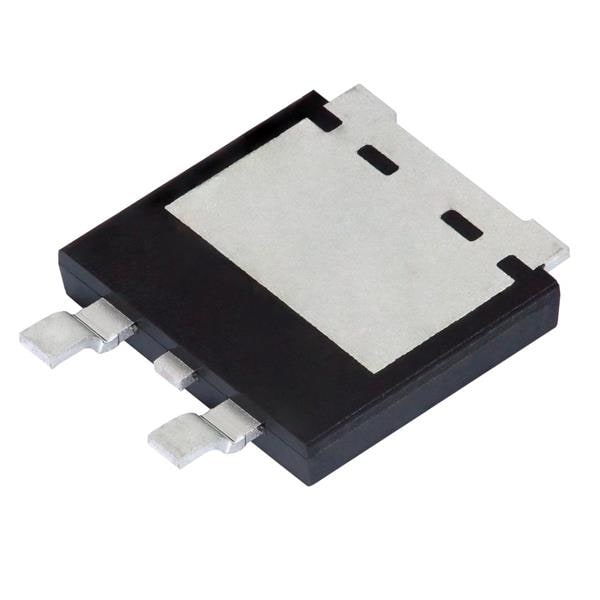

Vishay General Semiconductor V10D60CHM3_A/I Schottky Rectifiers TMBS 60V Vrrm eSMP AEC-Q101 Qualified
ModelV10D60CHM3_A/I
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Technology: Si
Unit Weight: 55 mg
REACH - SVHC: Details
Configuration: Dual Anode Common Cathode
Qualification: AEC-Q101
Mounting Style: SMD/SMT
If - Forward Current: 10 A (2 x 5 A)
Ir - Reverse Current: 700 uA
Vf - Forward Voltage: 550 mV
Vr - Reverse Voltage: 60 V
Ifsm - Forward Surge Current: 100 A
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: - 40 C
Vrrm - Repetitive Reverse Voltage: 60 V
