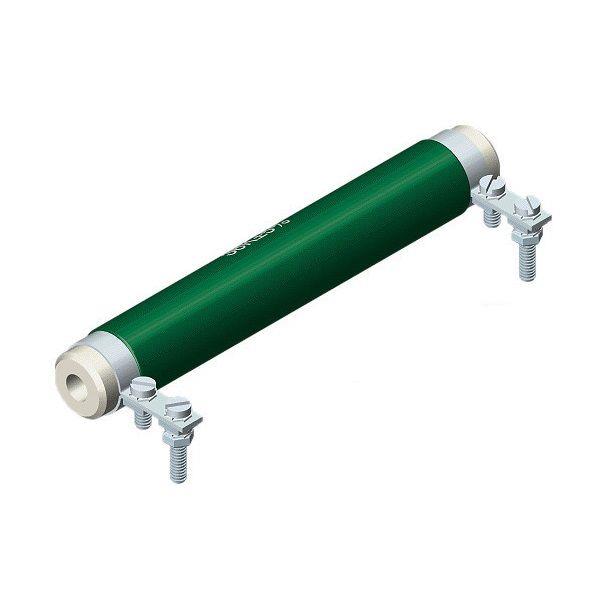

Vishay Draloric GWS30046209JLX000 Vitreous Wirewound Resistor 300watts 62ohms 5%
ManufacturerVishay Draloric(View more products from this manufacturer)
ModelGWS30046209JLX000
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Length: 265 mm
Diameter: 22.3 mm
Features: Coated Resistors, Vitreous Enamel Coated
Tolerance: 5 %
Resistance: 62 Ohms
Technology: Wirewound
Power Rating: 300 W
Mounting Style: Chassis Mount
Voltage Rating: 2.5 kV
Termination Style: Solder Lug
Temperature Coefficient: + 100 PPM / C, + 180 PPM / C
Maximum Operating Temperature: + 300 C
Minimum Operating Temperature: - 55 C
