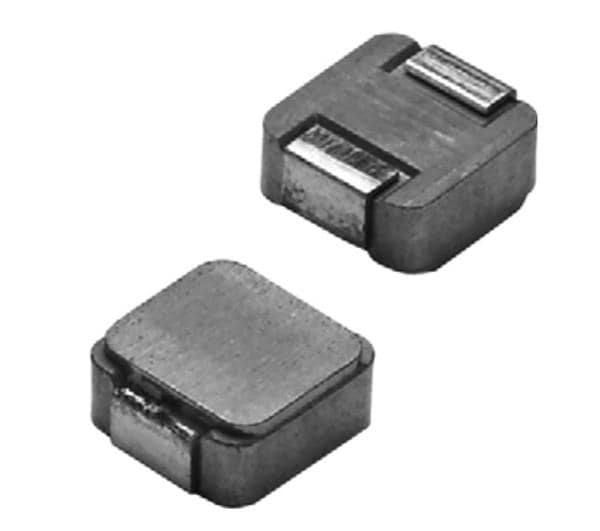

Vishay Dale IHLP1212ABEV1R2M5A Power Choke 1.2uH 20% High Temp AEC-Q200
ManufacturerVishay Dale(View more products from this manufacturer)
ModelIHLP1212ABEV1R2M5A
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 3.302 mm
Height: 1.2 mm
Length: 3.302 mm
Core Type: Molded
Shielding: Shielded
Tolerance: 20 %
Inductance: 1.2 uH
Application: Commercial
Termination: Standard
Unit Weight: 48.695 mg
Core Material: Composite
Qualification: AEC-Q200
Mounting Style: PCB Mount
Test Frequency: 100 kHz
Termination Style: SMD/SMT
Maximum DC Current: 3.98 A
Saturation Current: 3.84 A
Maximum DC Resistance: 57.65 mOhms
Self Resonant Frequency: 82 MHz
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
