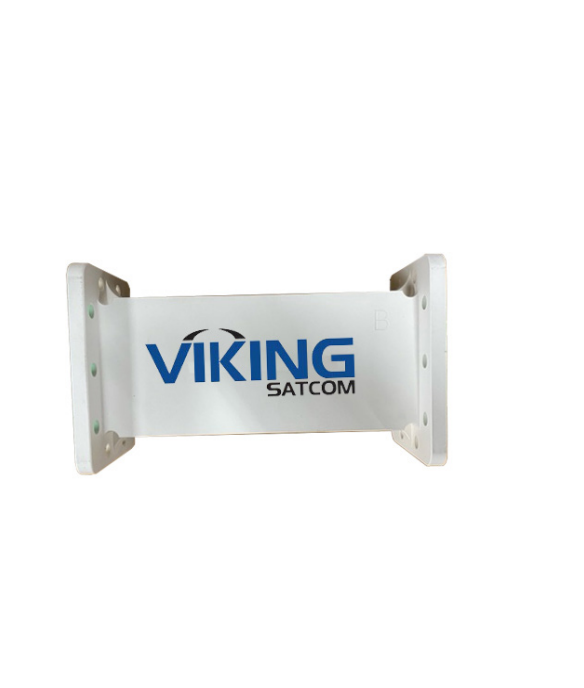

Viking Satcom FLT-VSF-K-01-03 Filter C band 5G (4000 – 4200 MHz)

Electrical Properties

Passband (MHz): 4000 - 4200

Group Delay Variation: 1.45 nSec Max within ±0.5 MHz

Insertion Loss – Typical (dB): 1.1

Insertion Loss – Max (dB): 1.3

Rejection:

70 dB Min below 3900 MHz

60 dB Min at 3980 MHz

50 dB Min at 3983 MHz

25 dB Min above 4230 MHz

Return Loss: 20 dB Min

Mechanical Properties

Interface Flanges: CPR229G / CPR229F - Thru holes

Material: Aluminum 6061

Finish:

Flanges: Chemical Conversion

Waveguide: Silver Plate

Exterior: Paint

Weight: 2.2 lbs (998 g)

Operating Temperature: -40°C to +50°C
