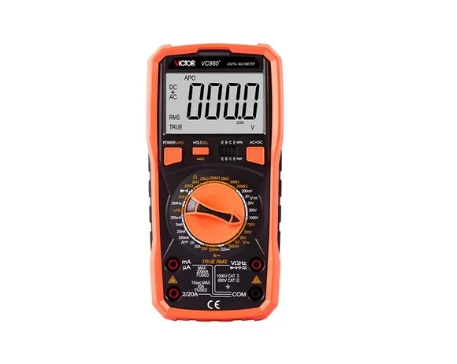

VICTOR VC980+ Digital Multimeter (1000VDC, 750VAC, 20ADC/AC, True RMS)

DC Voltage

200mV/2V/20V/200V ±(0.05%+5)

1000V ±(0.1%+5)

AC Voltage

200mV ±(1.0%+25)

2V/20V/200V ±(0.8%+25)

750V ±(1.2%+50)

DC Current

200uA/2000uA/2mA /20mA±(0.5%+4)

200mA ±(0.8%+6)

20A ±(2.0%+15)

AC Current

200mA±(1.5%+15)

20A±(2.5%+35)

Resistance

200Ω±(0.3%+10)

2kΩ/20kΩ/200kΩ/±(0.3%+5)

2MΩ±(1.2%+25)

20MΩ/200MΩ±(5.0%+45)

Capacitance

2nF/200nF/2uF/20uF±(4.0%+50)

200uF/2mF±(4.0%+50)

Frequency:200Hz/2kHz/20kHz/200kHz/2MHz±(0.1%+3)

Special Function

Diode/Transistor√

Continuity Buzzer√

Low battery indication√

HoldData Hold

Auto power off√

Backlight√

Function protection√

200mA protection√

Input impedance:10МΩ

Sampling rate:3 times/s

AC frequency response:40Hz-20kHz

Operation way:Manual range

Max. Display:19999

Battery: 1.5V AAA LR03 Battery

General Characters

Product Net Weight:Approx. 422g

Product dimension:186*92*52mm

Standard Accessories:Test leads , battery ,instruction manual
