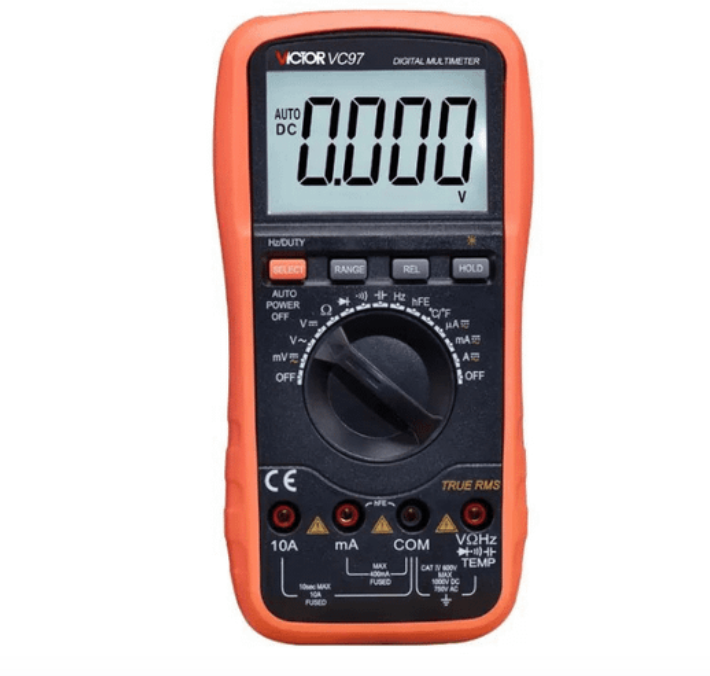

VICTOR VC97 Digital Multimeter (1000VDC, 750VAC, 10ADC/AC, True RMS)

Specification

DC Voltage:400mV/4V/40V/400V/1000V±(0.5%+4)

AC Voltage:4V/40V/400V/750V±(0.8%+10)

DC Current:400uA/4000uA/40mA/400mA/10A±(1%+10)

AC Current:400uA/4000uA/40mA/400mA/10A±(1.5%+10)

Resistance:400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ±(0.8%+4)

Capacitance:

10nF ±(5%+20)

100nF/1uF/10uF/100uF±(3.5%+8)

1mF/10mF/100mF±(5.0%+10)

Frequency:100Hz/1000Hz/10kHz/100kHz/1MHz/30MHz±(0.5%+10)

Temperature:(-20~1000)℃ /(-4-1832)℉±(1.0%+5)

Features

Diode√

Transistor√

Continuity buzzer√

Low battery indication√

Backlight√

Data Hold√

True RMS√

Auto power off√

Analog bar graph√

Shockproof protection√

Duty Cycle:1%~99.%

Input impedance:10МΩ

Sampling rate:3 times/s

AC Frequency response:40~400Hz

Operation way:Auto Range/Manual Range

Max. Display:3999

LCD size:70×50mm
