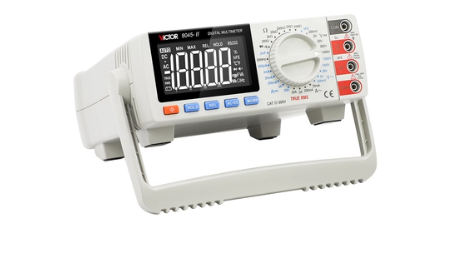

VICTOR VC8045-II Bench-type DMM (1000VDC, 750VAC, 20ACA/DCA, True RMS)

DC Voltage: 200mV/2V/20V/200V/1000V ±(0.05%+3)

AC Voltage: 200mV/2V/20V/200V/750V ±(0.8%+80)

DC Current: 20mA/200mA/2A/20A ±(0.35%+10)

AC Current: 200mA/2A/20A ±(0.8%+80)

Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ ±(0.1%+5)

Frequency: 20KHz/200KHz ±(1.0%+20)

Capacitance: 20nF/2uF/200uF ±(3.5%+20)

Features

Diode test √

Triode test √

Continuity buzzer √

Overload protection √

Input impedance: 10MΩ

AC frequency response: 3 times/s

Sampling rate: 40~50kHz

Operation way: Manual range

Max. Display: 19999

Power Supply: AC220V; 110V 50Hz/60Hz

Standard Accessories: Test Lead; Manual; Power Cable
