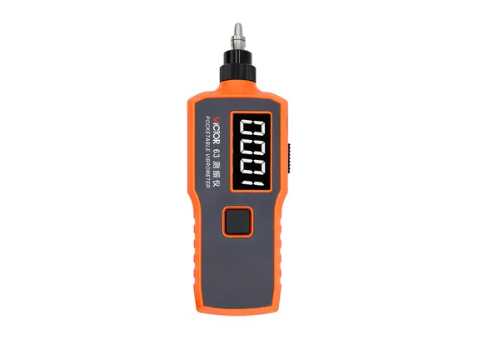

VICTOR VC63A Vibration Meter (0 ~ 1000μm)

Measurement range: vibration displacement:0 ～1000μm(peak to peak)

velocity:0～71mm/s (RMS)

Frequency response and error:

Vibration displacement( P-P ):12～200Hz,≤±10%

Velocity( RMS ):12～500Hz,≤±10%

Linearity and Accuracy

Vibration displacement( P-P ):0～20μm,≤±10% ＞20μm, ≤±5%

Velocity: 0～2.0mm/s, ≤±10% ＞2.0mm/s, ≤±5%

Low voltage indication: When the battery voltage is below 6.5V, the screen will prompt low voltage, then you should replace the battery with a new one.

Environmental

Environment temperature : 0 ～ 40 ℃

Relative humidity: ≤ 80%

Atmospheric pressure : 75 ～ 106kpa

Overall dimensions:185(H)×68(W)×30(D)mm

Weight: 480g(including battery)
