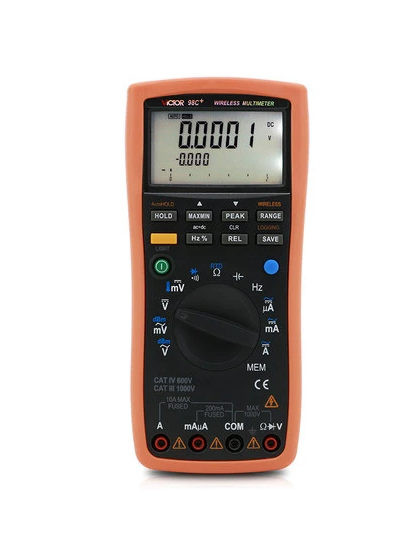

VICTOR 98C+ Digital Multimeter (1000VAC/DC, 10A AC/DC, TRMS)

DC V: 200mV/2V/20V/200V/1000V

Accuracy: ±(0.05% +10)

AC V: 200mV/2V/20V/200V/1000V

Accuracy: ±(0.5% +40)

DC A: 200uA/2000uA/20mA/200mA/2A/10A

Accuracy: ±(0.2%+10)

AC A: 200uA/2000uA/20mA/200mA/2A/10A

Accuracy: ±(0.8%+30)

Resistance: 200Ω/2ΚΩ/20ΚΩ/200 ΚΩ/2ΜΩ/20ΜΩ/60ΜΩ

Accuracy: ±(0.2% +5)

Capacitance: 10nF/100nF/1000nF/10uF/100uF/1000uF/10mF/100mF

Accuracy: ±(5%+5)

Frequency: 10Hz/100Hz/1000Hz/10kHz/100kHz/1000kHz//5MHz

Accuracy: ±(0.02%+4)

Thermocouple (K index):(-200.0-1372.0)°C

Accuracy: ±(0.5%+3°C)

RTD (Pt100):(-200.0-850.0)°C

Accuracy: ±(0.5%+3°C)

Features

Max Display: 22000

Sampling Rate: 3 times/s

Analog Bar Graph: 20 times/s

Operation Way: Automatic / Manual Range

True RMS: √

Bandwidth: 1kHz

Duty Cycle: 10%～90%

Diode test: √

Continuity beeper: √

dBm: √

MAX/MIN/AVG: √

Relative Value Measurement: √

Data Hold: √

Auto Hold: √

Peak Hold: √

The reference junction compensation: √

°C/ ° F conversion: √

Input impedance: 10MΩ

Data Recording: 2000 group

Auto power-off: √

Backlight: √
