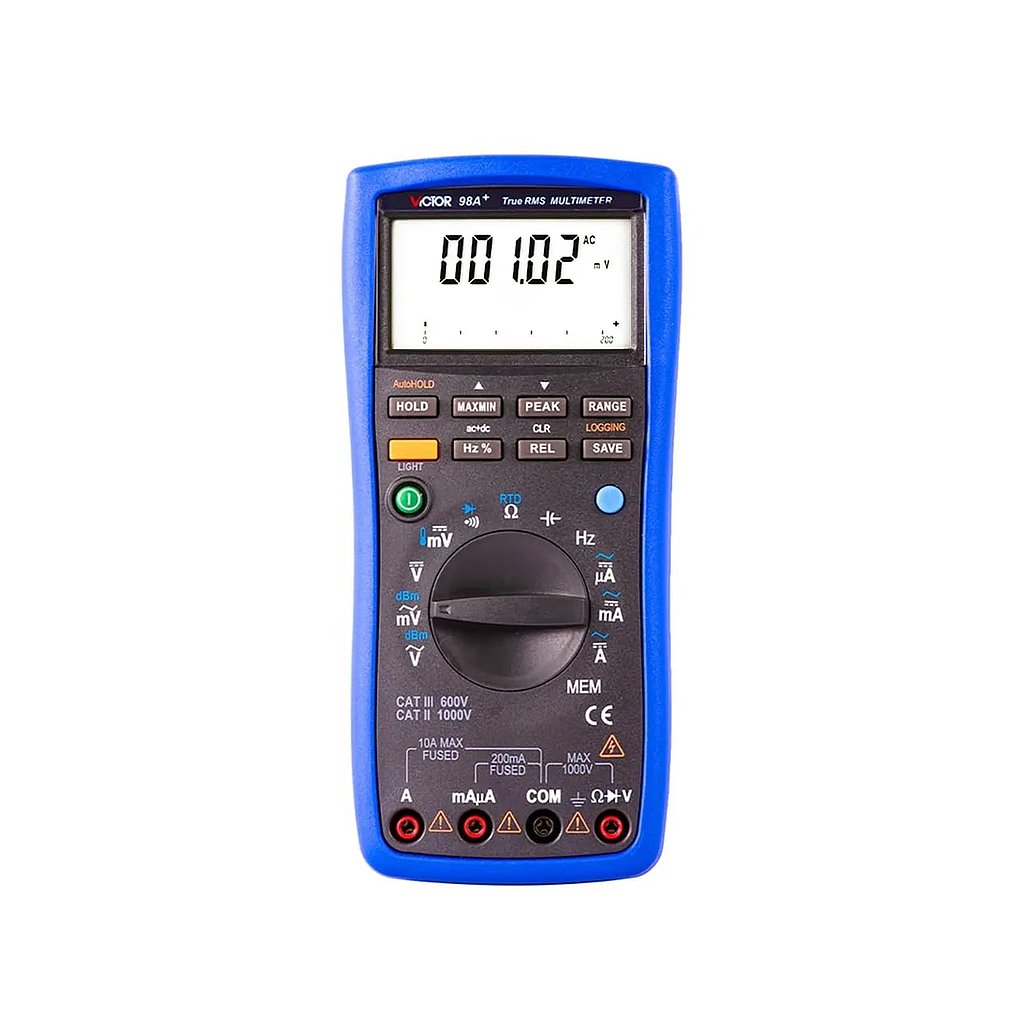

VICTOR 98A+ Digital Multimeter (1000VDC/AC, 10ADC/AC, TRMS)

DC voltage

Range:200mV/2V/20V/200V/1000V

Basic accuracy:±(0.05%+10)

AC voltage

Range:200mV/2V/20V/200V/1000V

Basic accuracy:±(0.5%+40)

DC current

Range:200uA/2000uA/20mA/200mA/2A/10A

Basic accuracy:±(0.2%+10)

AC current

Range:200uA/2000uA/20mA/200mA/2A/10A

Basic accuracy:±(0.8%+30)

Resistance

Range:200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/60MΩ

Basic accuracy:±(0.2%+5)

Capacitance

Range:10nF/100nF/1000nF/10uF/100uF/1000uF/10mF/100mF

Basic accuracy:±(5%+5)

Frequency

Range:10Hz～10MHz

Basic accuracy:±(0.02%+4)

Thermocouple

Range:

K indexing:-200.0°C～1372.0°C

Basic accuracy: ±(0.5%+3°C)

RTD

Range: Pt100:-200.0°C～800.0°C

Basic accuracy: ±(0.5%+3°C)

Display words: 22000

The measurement rate: 3 times / sec

Analog Bar graph: 20 times / sec
