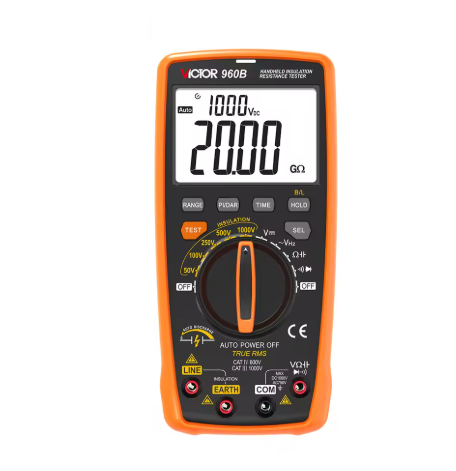

VICTOR 960B Insulation Resistance Tester (20GΩ, 1000VDC, 750VAC, True RMS)

Insulation Resistance Tester

Rated voltage: 50V

Measurement range: 4MΩ / 40MΩ / 400MΩ / 1GΩ

Range: 0.05MΩ ~ 1GΩ

Precision: ±(5%+5)

Resolution: 0.001MΩ ~ 0.001GΩ

Rated voltage: 100V

Measurement range: 4MΩ / 40MΩ / 400MΩ / 2GΩ

Range: 0.1MΩ ~ 2GΩ

Precision: ±(5%+5)

Resolution: 0.001MΩ ~ 0.001GΩ

Rated voltage: 250V

Measurement range: 4MΩ / 40MΩ / 400MΩ / 4GΩ / 5GΩ

Range: 0.25MΩ ~ 5GΩ

Precision: 0.25MΩ ~ 399.9MΩ: ±(3%+5)

Rated voltage: 500V

Measurement range: 4MΩ / 40MΩ / 400MΩ / 4GΩ / 10GΩ

Range: 0.5MΩ ~ 10GΩ

Precision: 0.4GΩ ~ 2GΩ: ±(5%+5)

Resolution: 0.001MΩ ~ 0.01Ω

Rated voltage: 1000V

Measurement range: 4MΩ / 40MΩ / 400MΩ / 4GΩ / 20GΩ

Range: 1MΩ ~ 20GΩ

Precision: 2.001GΩ ~ 20GΩ: ±(10%+5)

Multimeter

DC voltage: 6V / 60V / 600V

Accuracy: ±(0.5%+4)

DC voltage: 1000V

Accuracy: ±(1.0%+6)

AC voltage: 6V / 60V / 600V

Accuracy: ±(0.8%+10)

AC voltage: 750V

Accuracy: ±(1.0%+10)

Resistor: 600Ω

Accuracy: ±(0.8%+5)

Resistor: 6kΩ / 60kΩ / 600kΩ / 6MΩ

Accuracy: ±(0.8%+4)

Resistor: 60MΩ

Accuracy: ±(2.0%+5)

Capacitor: 10nF

Accuracy: ±(3.0%+20)

Capacitor: 100nF / 1000nF / 10uF / 100uF / 1000uF

Accuracy: ±(3.0%+5)

Capacitor: 10mF / 100mF

Accuracy: ±(8.0%+5)

General Function

Sampling rate: About 3 times per second

Overrange: Display “OL”

Low pressure: Yes

Diode: Yes

Data retention: Yes

On-off beeping: Yes

Backlight display: Yes

True effective value: Yes

Automatic shutdown: About 15 minutes after powering on

Power supply: 10440 2 × 3.7V lithium batteries

Size: 189 × 88 × 56mm

Weight: Approximately 395g
