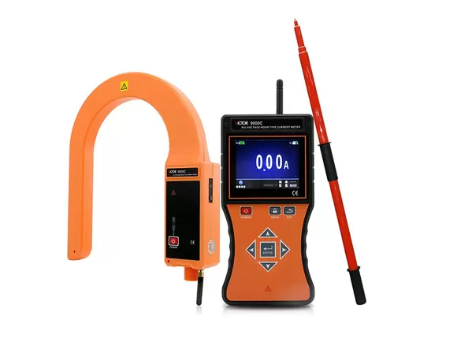

VICTOR 9000C Ampere Current Meter (AC 0～6000A, 35 or 110KV)

Tested line diameter:Ф168mm Conductor or cable, or 168mm×245mm bus bar

Measurement range

Current: AC 0～6000A

Frequency: 45Hz～75Hz

Resolution:10mA；0.1Hz

Current precision (23℃±5℃,below 80%RH)

0.00A～99.9A: ±2%±5dgt

6.00kA～20.0kA: ±4%±5dgt

Frequency precision:±1Hz

Gear shift:Automatic gear shifting

Size of insulation rod:About 5m long after extended; about 1m long after drawn back (5 nodes)

Data storage:9999 sets

Sample frequency:2 times/s

Instrument size:

Hook instrument: length width thickness 310mm×270mm×52mm

Receiver: length width thickness 250mm×100mm×40mm

Line voltage:Test bare conductor under 35kV, cable with safe insulation sheath under 110kV (operate with insulation rod)

Data maintenance:Press HOLD button under testing mode to maintain the data, and then press HOLD button again to cancel the maintenance
