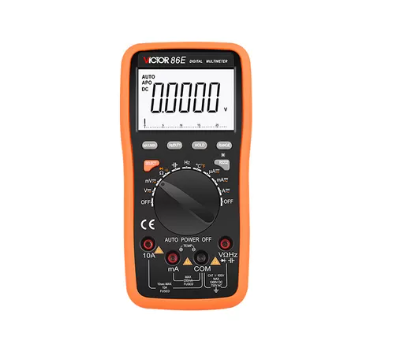

VICTOR 86E Digital Multimeter (1000VDC, 750VAC, 10ADC/AC)

DC Voltage

220mV/2.2V/22V/220V±(0.05%+8d)

1000V±(0.1%+10d)

AC Voltage

220mV±(0.5%+25d)

2.2V/22V/220V±(0.5%+5d)

750V±(1.0%+25d)

DC Current

220uA/2200uA /22mA±(0.5%+4d)

220mA±(0.8%+6d)

10A±(2.0%+15d)

AC Current

220uA/2200uA /22mA±(0.8%+15d)

220mA±(1.5%+25d)

10A±(2.5%+35d)

Resistance

220Ω±(0.5%+30d)

2.2kΩ/22kΩ/220kΩ/2.2MΩ±(0.4%+5d)

22MΩ±(0.5%+25d)

220MΩ±(5%+10d)

Capacitance

22nF/220nF/2.2uF/22uF/220uF±(2.5%+30d)

2.2mF/22mF±(5.0%+50d)

220mF±(7.0%+50d)

Frequency

22Hz/220Hz/22kHz/220kHz/2.2MHz/22MHz±(0.1%+4d)

50MHz±(0.2%+4d)

Celsius

-4~752℉±(1.2%+6℉)

≥752~1832℉±(1.9%+25℉)

Temperature

-20 ~400℃±(1.0%+5℃)

≥400~1000℃±(1.5%+15℃)

Special Function

Diode test√

Transistor test√

Continuity buzzer√

Low battery indication√

Data hold√

Auto power off√

Bar graph display:46segment(20times/s)

RS232 interface jack√

Function protection√

Shockproof protection√

Frequency /duty cycle:5.0%~94.9%

Input impedance:10MΩ

Sampling rate:2 times/s

AC Frequency response:(40~400Hz)

Operation way:Manual/Auto range

Max. Display:22000

Power:9V

General Characters

Product Net Weight:Approx.410g (including battery)

Product dimension:185×91×49mm

Standard Accessories:Test leads; battery; instruction manual TP01 temperature probe, Holster
