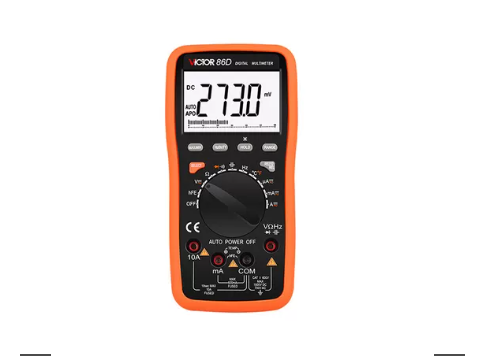

VICTOR 86D Digital Multimeter (1000VDC, 750VAC, 10ADC/VC)

DC Voltage:600mV/6V/60V/600V/1000V±(0.5%+4)

AC Voltage:6V/60V/600V/750V±(0.8%+10)

DC Current:600uA/6000uA /60mA/600mA/6A/10A±(1.2%+10)

AC Current:600uA/6000uA /60mA/600mA/6A/10A±(1.5%+10)

Resistance:600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ±(0.8%+4)

Capacitance:40nF/400nF/4uF/40uF/200uF±(3.5%+8)

Frequency:100Hz/1kHz/10kHz/100kHz/1MHz/30MHz±(0.5%+15)

Temperature/Celsius:(-20 ~ 1000) ℃ /(0~1832) ℉±(1.5%+15)

Special Function

Diode test√

Transistor test√

Continuity buzzer√

Low battery indication√

Data hold√

Auto power off√

Bar graph display61 segment(30times/s)

RS232 interface jack√

Max./ Min√

Function protection√

Shockproof protection√

Frequency /duty cycle:0.1%~99.9%

Input impedance:10MΩ

Sampling rate:3 times/s

AC Frequency response:(40-400)Hz

Operation way:Manual/Auto range

Max. display:5999

LCD Size:70×50mm

Power:1.5*2

General Characters

Product Net Weight:Approx.410g (including battery)

Standard Accessories:Test leads; battery; instruction manual TP01 temperature probe; Holster
