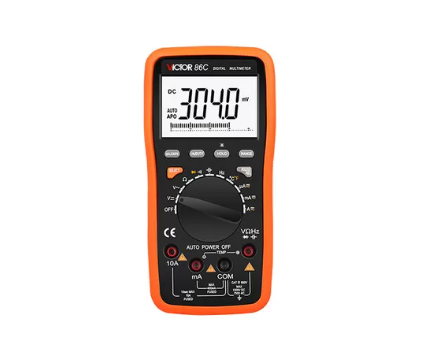

VICTOR 86C Digital Multimeter (1000VDC, 750VAC, 10ADC/VC, True RMS)

DC Voltage:400mV/4V/40V/400V/1000V±(0.5%+4)

AC Voltage:400mV/4V/40V/400V/750V±(0.8%+10)

DC Current:400uA/4000uA /40mA/400mA/4A/10A±(1.0%+10)

AC Current:400uA/4000uA /40mA/400mA/4A/10A±(1.5%+10)

Resistance:400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ±(0.8%+4)

Capacitance:40nF/400nF/4uF/40uF/200uF±(3.5%+8)

Frequency:100Hz/1kHz/10kHz/100kHz/1MHz/30MHz±(0.5%+4)

Temperature:

(-20 ~ 1000)℃±(1.0%+5)

Celsius(0~1832)℉±(1.5%+15)

Special Function

Diode test√

Transistor test√

Continuity buzzer√

Low battery indication√

Data hold√

Auto power off√

Bar graph display41segment(30time/s)

RS232 interface jack√

Max./ Min√

Function protection√

Shockproof protection√

Frequency /duty cycle:0.1%~99.9%

Input impedance:10MΩ

Sampling rate:3 times/s

AC Frequency response:(40-400)Hz

Operation way:Auto range

Max. display:3999

LCD Size:70×50mm

Power:3V (1.5V×2)

General Characters

Product Net WeightApprox.350g (including battery)

Product dimension191×93×48mm

Standard AccessoriesTest leads; battery; instruction manual TP01 temperature probe;(86C Transistor test accessory)
