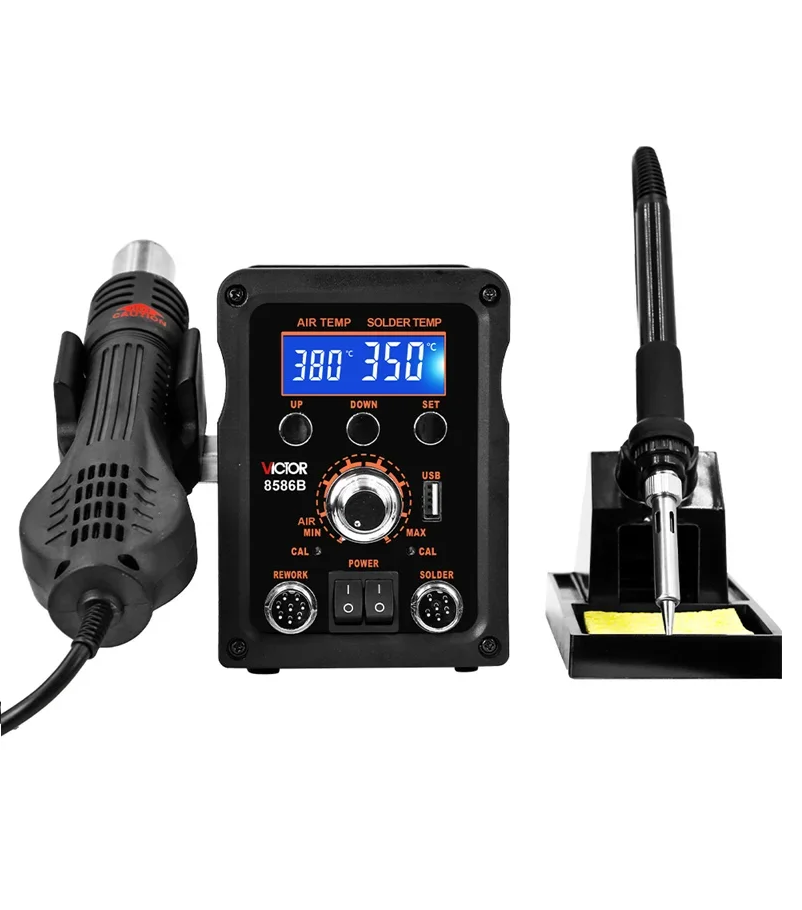

VICTOR 8586B Welding Station (700W, 100-500℃)

Basic Function

Power consumption: 750W (MAX)

Input voltage

AC (100V/110V/120V/220V/230V/240V)

50/60Hz (optional)

Display mode: LED screen display

Heating & soldering station

Power consumption: 700W (MAX)

Temperature range: 100–500°C (212°F–932°F)

Air pump type: Fan type

Noise: <52dB(A)

Air flow: 120L/min (MAX)

Electrical soldering station

Power: 70W (MAX)

Temperature range: 200–480°C

Temperature stability: ±2°C (still air and no load)

Temperature accuracy: ±15°C

Impedance of welding tip to ground: <2Ω

Voltage of welding tip to ground: <2mV

Heating core: Four-core stainless steel heating core

Working voltage of heating core: 24DC

Overall dimensions of unit: 167(L) * 100(W) * 131(H) mm

Weight: 1.86KG

USB port: 5V and 2A (max)
