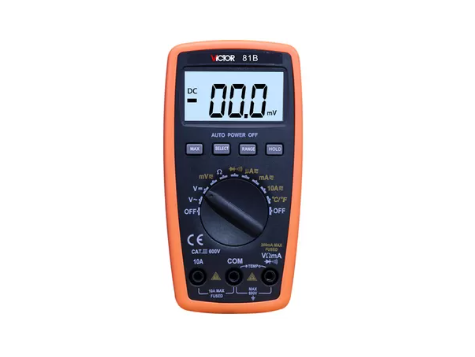

VICTOR 81B Digital Multimeter (600VAC/DC,10ADC/AC)

DC Voltage:200mV/2V/20V/200V/600V±(0.5%+4)

AC Voltage:200mV/2V/20V/200V/600V±(0.8%+6)

DC Current:200uA/2000uA/20mA/200mA/10A±(1.0%+10)

AC Current:200uA/2000uA/20mA/200mA/10A±(1.5%+10)

Resistance:200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ±(0.8%+4)

Celsius:(-20-1000)℃±(1.0%+5)

Fahrenheit:(0-1832)℉±(1.0%+5)

Special Function

Diode test & Continuity buzzer√

Low battery indication√

Data hold√

Auto power off√

Function protection√

10A fuse√

Shockproof protection√

self-resume fuse protection for mA√

Unit symbol display√

Max. value measurement√

Input impedance:10MΩ

Sampling rate:3 times/s

AC Frequency response(50-200)Hz

Operation way:Auto/Manual range

Max. Display:3 1/2 (1999)

LCD size:57×33mm

Battery:3V(1.5×2)

General Characters

Product Net WeightApprox: 200g(including battery)

Product Dimension145×80×30mm

Standard AccessoriesTest leads,battery,instruction manual,TP01 K style temperature probe,

Packing Details

Open the gift box and take out the instrument, carefully check the following accessories. If any accessory is missed or damaged, please contact the manufactory at once.

● Digital Multimeter 1PC

● Operation Manual 1PC

● Test Leads 1SET

● Temperature Probe(K Type Thermocouple) 1PC

● AAA(1.5V)7# Battery 2PCS

● Holster 1PC
