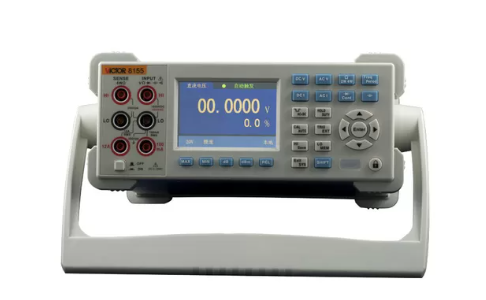

VICTOR 8155 Bench-type DMM (1000VDC, 750VAC, 10ACA/DCA, TRMS)

Mode of display: 3.5-inch LCD display;

Maximum display: 220 000 (5 1/2) automatic polarity display and unit digit display;

Range selection: automatic / manual;

Note to over-range: the screen displays "-OL-";

Measuring rate: fast (6 times / sec), medium (4 times / sec), slow (1 times / sec);

Power supply voltage: AC 220V ± 10%, 50Hz;

Working environment: (0 ~ 40) ℃, relative humidity <80%;

Storage environment: -10 ~ 50 ℃, relative humidity <80%;

Dimensions: 265mm x 105mm x 330mm (width X height X depth);

Weight: 2.3kg;
