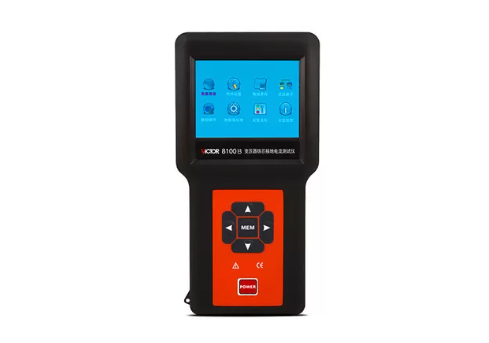

VICTOR 8100B Transformer Core Grounding Current Tester (AC 0.00mA ~ 1000A)

Power Source:DC 9V alkaline dry batteries LR6 1.5V×6

Clamp Size:80mm×80mm (can clamp electric cable of 80mm diameter, or 96mm×4mm flat cable and steel earth wires)

RangeCurrent: AC 0.00mA~1000A

Frequency: 10HZ~1000HZ

Resolution:AC 0.01mA

Accuracy:±1.5%±3dgt

Display Mode:3.5-inch Color Touch LCD

Operation Method:Include intelligent touch and key control

Meter Size:198mm×100mm×45mm

Current Clamp Size:194mm×145mm×40mm

Weight

Mainframe: 450g(include battery);

Current clamp: 780g

Sample Rate:2 times/s

Data Storage:200sets (power down or replace battery will not lose data)

Date:include date and time function and can setting the date and time

Test number:can set the test point number

Automatic Shutdown:About 5mins after startup, the instrument will be automatically shut down

USB Interface:Data stored in the memory of the meter via USB upload to PC
