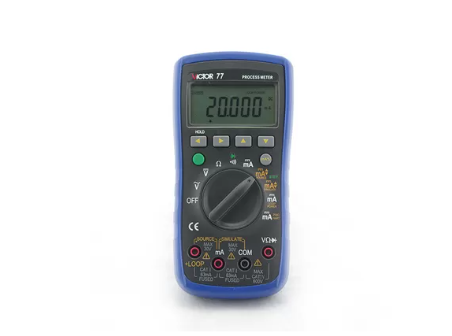

VICTOR 77 Process Multimeter (±51VDC, 510VAC, ±22mADC)

Measurement

DC voltage

Range:±51V

The highest resolution:10mV

Basic accuracy:0.5%

AC voltage

Range:`510V

The highest resolution:100mV

Basic accuracy:1.5%

Resistance

Range:5kΩ

The highest resolution:1Ω

Basic accuracy:0.5%

DC current

Range:±22mA

The highest resolution:1uA

Basic accuracy:0.2%

Diode test√

Continuity beeper√

Data hold√

DC current

Range:22mA

Resolution:0.001mA

Basic accuracy:0.2%

Simulating transmitter√

25％,100％Step output√

Display current and % of span√

Loop power:24V

Loop detection

The 24V loop power supply and measuring the current√

Built in 250 Ω

HART loop resistance√

Power Supply:2×1.5V AA Alkaline battery

Auto Power-off√

Safety:CAT Ⅳ 600V, Pollution degree 2

Size:180×90×52

Weight:About 400g

Accessories:Test line, manual,fuse
