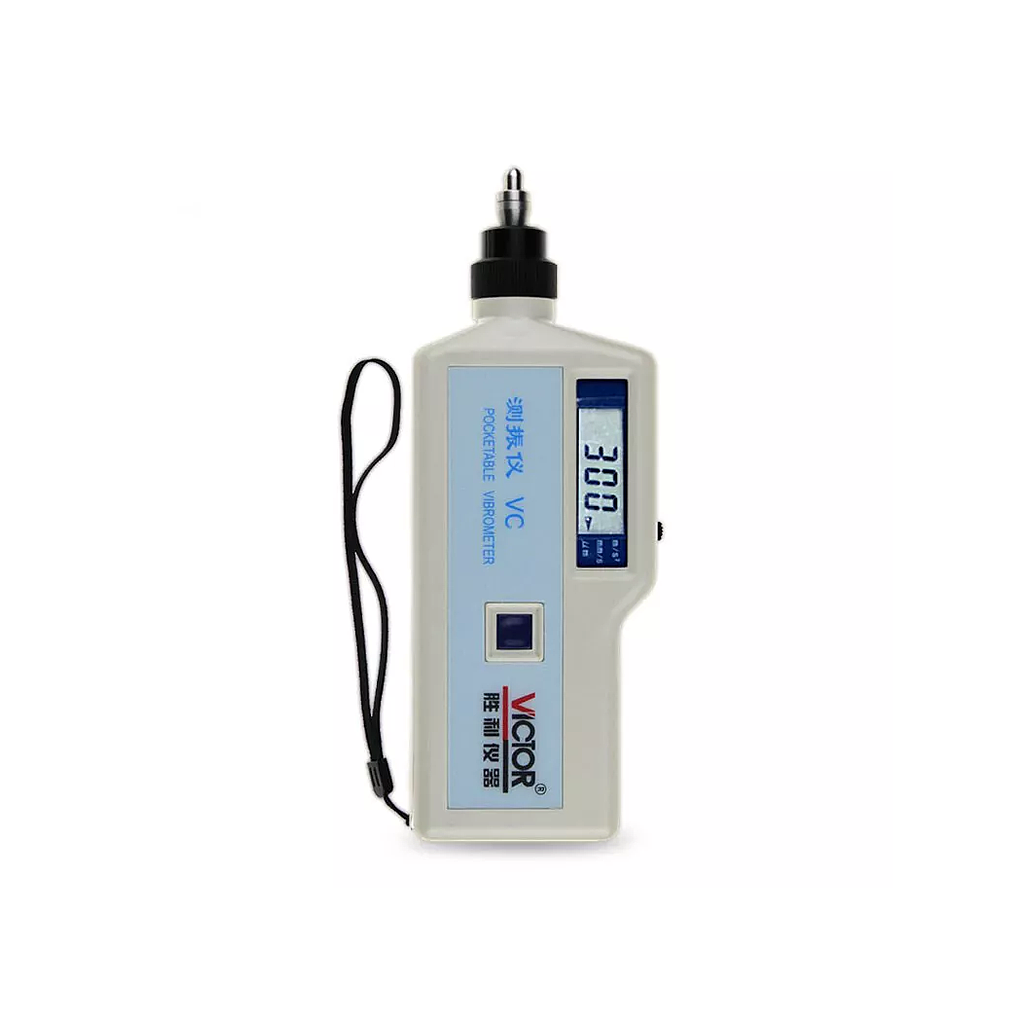

VICTOR 65 Vibration Meter (1～1999 um P-P, RMS 0.1～199.9 mm/s)

Measurement range

Vibration displacement (P-P): 1～1999 um P-P (RMS×2.828)

Vibration speed (RMS): 0.1～199.9 mm/s RMS

Vibration acceleration (O-P): 0.1～199.9m/s2 Peak(RMS×1.414)

Frequency sound range　

Acceleration: 10Hz～1kHz(LO)，1kHz～15kHz(HI)

Speed: 10Hz～1kHz(LO)

Displacement: 10Hz～1kHz(LO)

Basic Features

Model Features: High-frequency integration

Measurement accuracy: ±5％ ±2dgt

Low-voltage indication √

Data retention time: The measured data is maintained for a minute when the measurement key is released

Figure value fluctuation: The value indicates fluctuations not greater than one resolution
