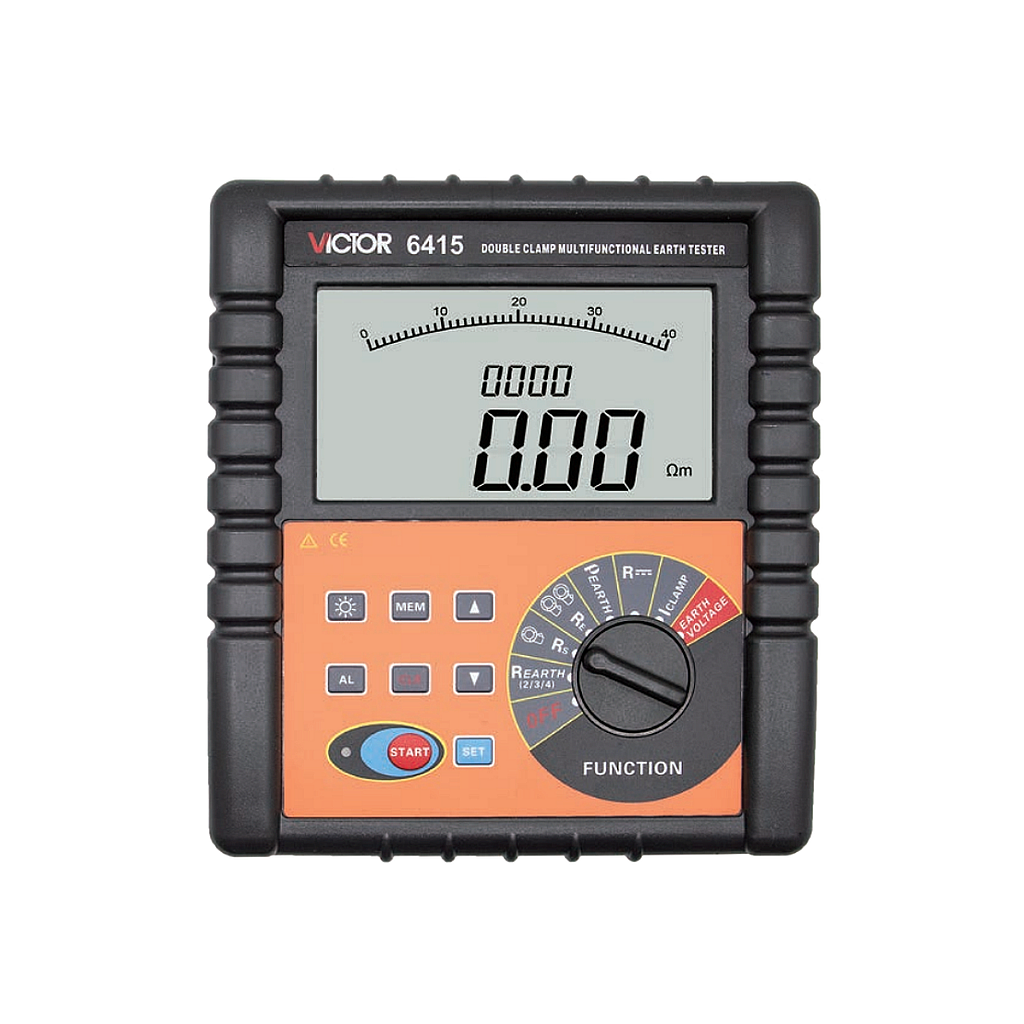

VICTOR 6415 Earth Resistance Tester (0.00mA~600AAC)

Function: 4-pole, 3-pole ,2-pole, selection, double clamp method measure grounding resistance, Soil Resistivity; Earth Voltage, AC Voltage, AC Leakage Current

Selection Method

Range: 0.00Ω-30.00Ω/ 30.00Ω-300.0Ω/ 300Ω-3000Ω

Accuracy: ±2%rdg±3dgt

Resolution: 0.01Ω / 0.1Ω / 1Ω

Double Clamp Method

Range: 0.01Ω-1.00Ω/ 1.0Ω-10.0Ω/ 10Ω-100Ω

Accuracy: ±10%rdg±5dgt

Resolution: 0.01Ω / 0.1Ω /1Ω

2/3/4 Pole Method

Range/ Accuracy/ Resolution:

0.00Ω~30.00Ω/ ±2%rdg±3dgt/ 0.01Ω

30.0Ω~300.0Ω/ ±2%rdg±3dgt/ 0.1Ω

300Ω~3000Ω/ ±2%rdg±3dgt/ 1Ω

3.00kΩ~30.00kΩ/ ±4%rdg±3dgt/ 10Ω

AC Current

Range/ Accuracy/ Resolution:

0.00mA~600A/ ±2%rdg±3dgt/ 0.01mA
