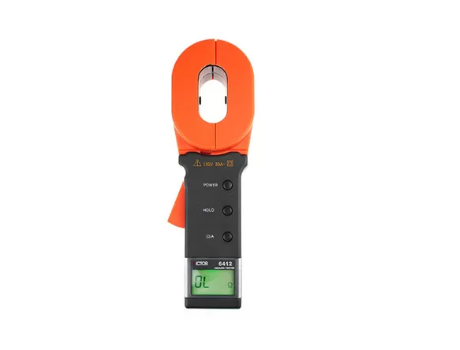

VICTOR 6410 Ground resistance tester (1000Ω, 30A)

Power Source: 6VDC (4pcs 5# alkaline battery)

Working Temperature: -10 ° -55 ° C

Relative Humidity: 10%-90%

LCD: 4-digital LCD, 47mm (L) × 28.5mm (W)

Meter Size: 275mm (L); 85mm (W); 56mm (H)

Meter Weight (including batteries): 1130g

Protection Level: Double insulation

Structural Feature: Clamp and jaw type

Range Shift: Automatic

External Magnetic Field: ＜40A/m

External Electric Field: ＜1V/m

Single Measuring Time: 1 second

Measurement Resistance Frequency: ＞1KHz

Maximum Resistance Measurement Resolution: 0.001 Ω

Resistance Measurement Range: 0.01-1000 Ω

Current Measuring Range: 0.00-30.0A(C type)

Measured Current Frequency: 50/65Hz

Storable Measurement Data: 99 Units

Setting Range of Resistance Alarm Critical Value: 1-199 Ω

Setting Range of Current Alarm Critical Value:1-499mA(C type)
