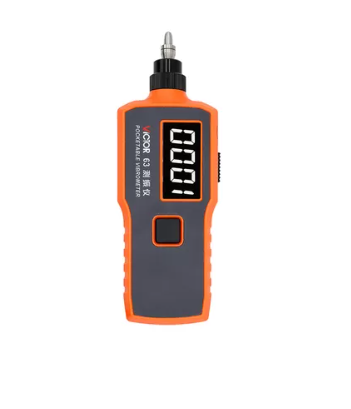

VICTOR 63 Handheld Vibration Meter (0-199.9 mm/s, 0-199.9 m/s²)

Measuring range

Vibration displacement (P-P): 0-1999um

Vibration velocity (RMS): 0-199.9mm/s

Vibration acceleration (O-P): 0~199.9m/s

Frequency response

Acceleration: 10Hz-1kHz

Speed: 10Hz-500Hz

Displacement: 10Hz~200Hz

Basic Function

Measurement Accuracy: ±10%

Ambient Temperature: 0-40°C

Relative Humidity: ≤80%

Atmospheric Pressure: 75-106Kpa

Other Function

Low Voltage Indication: If the battery voltage is lower than 5.5V, the low voltage prompt is displayed

Data Retention Time: After releasing the measurement key, the data is held for 1 minute

Indication Fluctuation: The indication fluctuation shall not be greater than one resolution

Basic parameters

Power Supply: 9V

Display Size: 50*13mm

Fuselage Size: 185*68*30mm

Fuselage Weight: 160g(Including battery)
