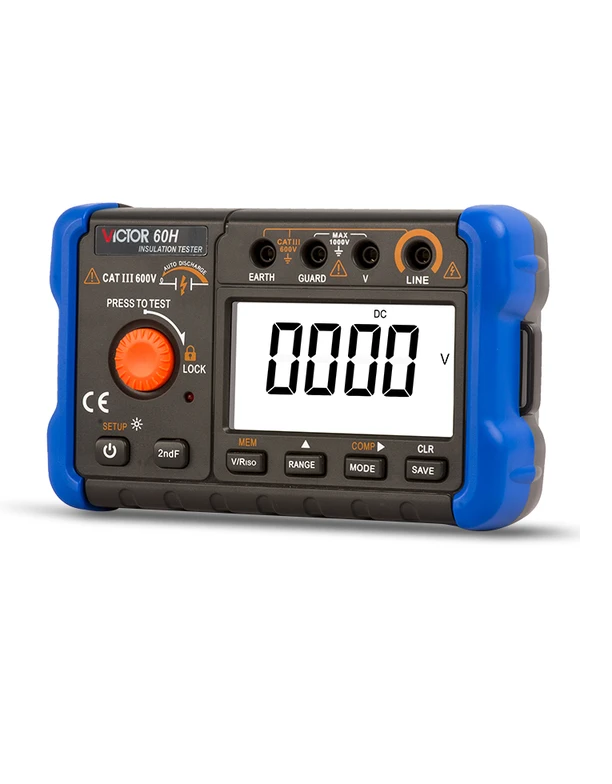

VICTOR 60H Digital Insulation Tester (1000V, 19.99 GΩ)

Basic measurement functions

DC voltage DCV

Measurement range: 0 ~ ±1000V.

Measurement basic accuracy: 2%

AC true RMS voltage ACV

Measurement range: 30~750V(50/60Hz)

Measurement basic accuracy: 2%

Insulation resistance test

4 insulation test voltage ranges: 100V, 250V, 500V, 1000V

Basic accuracy: 0~+20%

Insulation test range: 0.00 MΩ ~ 19.99 GΩ

Measurement basic accuracy: 5%

Short circuit current is about 1.3 mA

Product accessories

Standard configuration

Test meter probe (including alligator clip)-1

Product manual - 1

#5 alkaline battery - 8

Printed box - 1

Handle rope - 1

Optional accessory

5V power adapter - 1

Datasheet
