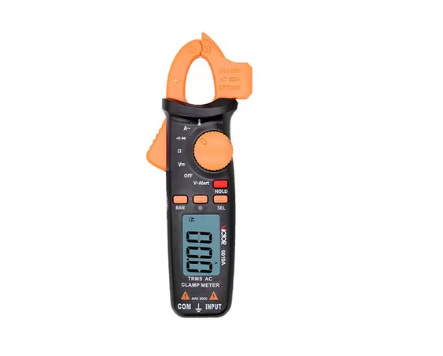

VICTOR 6019C Ampe kìm kĩ thuật số (600VDC/AC, 100ACA/DC)

ACA

6A/60A/100A±(2.5%+5counts)

DCA

6A±(3%+5counts)

60A/100A±(2.5%+5counts)

0-200μA±(0.8%+5counts)

DCV

6V/60V/600V±(1.0%+3counts)

ACV

6V/60V/600V±(1.0%+3counts)

Resistance

600Ω/6KΩ/60KΩ/600KΩ/6MΩ±(1.0%+3counts)

60MΩ±(1.2%+20counts)

Capacitance

600μF/6000μF±(4%+3counts)

Frequency

60Hz/1000Hz±(1.0%+5counts)

Temperature

-20~500℃ /-4~932℉±(2%+2counts)

Special function

Low impedance measurement√

NCV Test√

Live wire test√

continuity test alarm√

Low battery indication√

Backlight display√

Function protection√

AUTO Power off√

Automatic power off time:20 mins, push SEL+ to cancel the mode

Input impedance :10MΩ

Relative humidity:≤ 75%

Working height:Max. 2000m

Over range indication"OL" displays

Sampling time:About 3 times/s

Working temperature:0℃~40℃

Storage temperature:-10℃~50℃

ACV Frequency response:45-1000Hz

Operate method:Auto range

Weight:137g

Max. display:6000 counts

Polar indication:Automatically indicate

Power supply:2*1.5V AAA Battery

Dimension:L179*W67*H36mm
