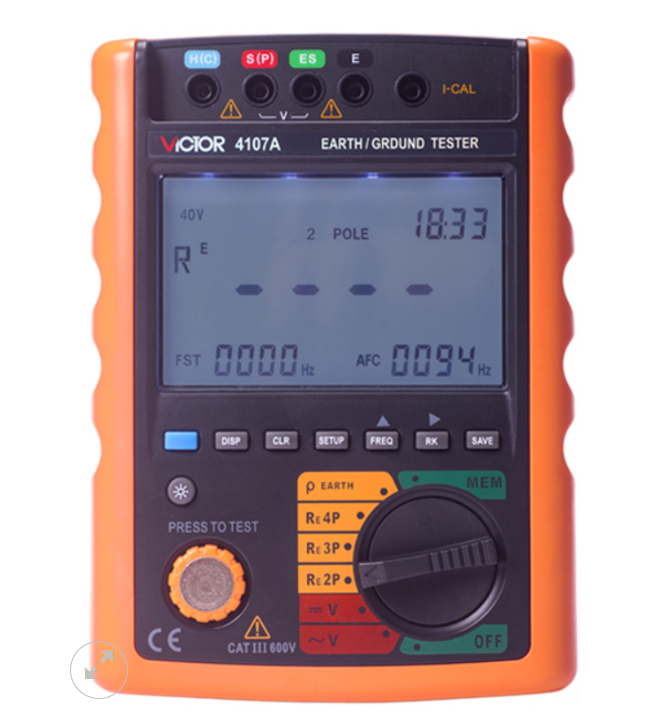

VICTOR 4107A Earth resistance tester (0.02Ω～19.99kΩ)

Measuring function

Measurement of RE pile method:2pole / 3pole / 4pole

Re(Rg)

Range0.02Ω～19.99kΩ

Basic accuracy2%+0.03

ρYes

Power Supply:8×1.5V AA Alkaline battery

Auto Power-off√

Display type240 * 128 dot matrix

Backlight√

Storage√

Communication:Isolation of USB communication

Size:210×155×95

Standard accessories

• Measurement Suit:H000007

includes:

1 testing wire 6m(black)

1 testing wire 6m(green)

1 testing wire 15m(red)

1 testing wire 30m(blue)

4 auxiliary earth spikes

• 1 user’s manual

• 8 1.5V (LR6)Alkaline batteries

• USB Communication wire

• a software disk(ERTMA)

• Low Range Clamp: H300000R

• Standard Range Clamp: H300000T

• Measurement Ring:H900000

Chosen accessories

• DC15V adaptor

• Rechargeable Batteries(8☓1.2V Ni-Hi or Ni-chromium rechargeable batteries LR6)
