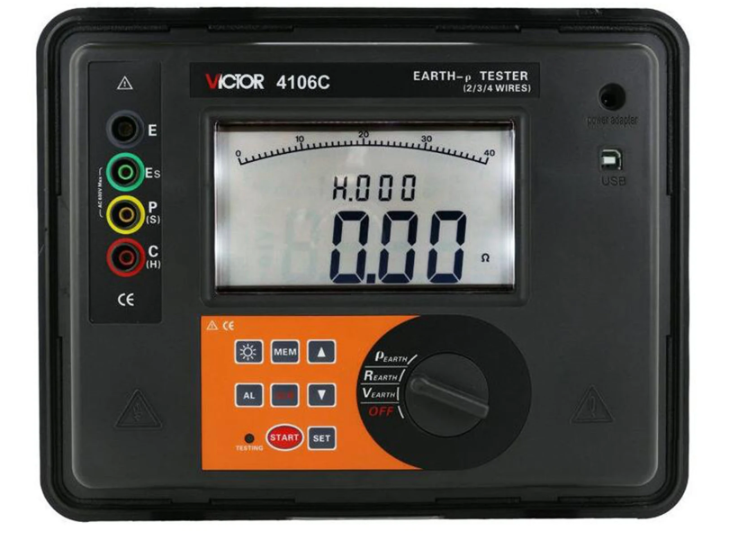

VICTOR 4106C Ground resistance tester (600VAC/DC, 200mADC, 500AAC)

Ground resistance

Range:

0.00Ω～30.00Ω / 30.0Ω～300.0Ω / 300Ω～3000Ω (±2%rdg±3dgt)

3.00kΩ～30.00kΩ ±4%rdg±3dgt

Resolution: 0.01Ω/ 0.1Ω /1Ω/10Ω

Ground voltage

AC 0.0～600V ±2%rdg±3dgt

Resolution: 0.1V

Soil resistivity

Range: 0.00Ωm～9000kΩm

Resolution: 0.1Ωm / 1Ωm/ 10Ωm / 100Ωm / 1kΩm

Measuring method: Grounding resistance:rated current pole changing method, measuring current 20mA Max. Soil resistivity: quadrupole method (Wenner

method). Grounding voltage : average value rectification

Test frequency: 128Hz/111Hz/105Hz/94Hz(AFC)

Test voltage waveform: Sine wave

Short circuit test current: AC 20mA max

Data storage: 300 groups

Data reference: "READ" symbol

Open circuit test voltage: AC 40V max

Data hold: "HOLD" symbol

Overflow display: "OL" symbol

Test line: red 20m, black 20m, yellow 10m, green 10m, red 1.6m, black 1.6m each 1 (total 6)

Auxiliary ground rods: 4 *φ10mm×150mm

USB interface: With USB interface, software monitoring, stored data can be uploaded to the computer, saved and printed; one 1.5m long

communication line

Alarm function: When the measured value exceeds the alarm setting value, alarm prompt "beep-beep-beep--"

Auto power off: Auto power off after 15 minutes

Overload protection: Measuring ground resistance: AC 280V/3 seconds between each port of C(H)-E, P(S)-ES

Interference test: Automatically identify the interference signal, and the "NOISE" symbol indicates when the interference voltage is larger than 5V

Auxiliary grounding test: With auxiliary grounding resistance value test function, 0.00kΩ～30kΩ (100R+rC<50kΩ, 100R+rP<50kΩ)

Protection level: IP65 (with cover closed)

Battery voltage: When the battery voltage drops to about 7.5V and show the low battery voltage symbol “ ”, please replace the battery

Working current: Standby: about 20mA (backlight off); turn on the backlight: about 45mA (backlight off 25mA); measurement: about 100mA (backlight

off)

Accessories: Meter: 1; Grounding probe: 4; Test lead: 4; Simple test lead: 2; USB communication cable: 1; CD: 1; Meter bag: 1; Special charger:

1

Power: DC 7.4V 2600mAh rechargeable lithium battery

LCD size: LCD size 128mm×75mm; LCD display area 124mm×67mm

Size: 280mm×260mm×160mm
