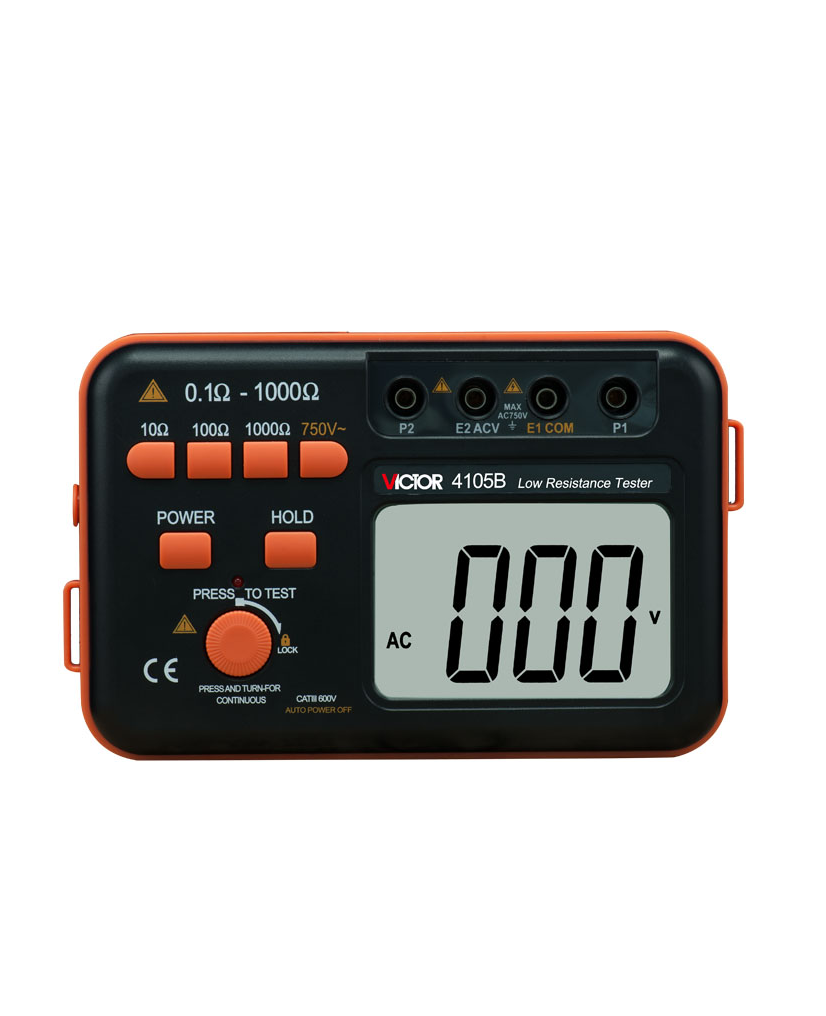

VICTOR 4105B Ground Resistance Tester (1000Ω, 750VAC)

Ground resistance:

Range/ resolution/ Basic accuracy

10Ω/ 0.01Ω/ ±(2%+21Ω)

100Ω/ 0.1Ω/ ±(2%+3dgt)

1000Ω/ 1Ω/ ±(2%+3dgt)

Ground current ( AC current)

Range/ resolution/ Basic accuracy

750V/ 1V/ ±(1%+10dgt)

Display: 84.8×59.8mm LCD display, max display “1999”.

Over range presentation: it will display “1”on the top number when it is over range

Power: alkalescence battery LR (1.5V)×8(can contact with power adapter)when the battery is low, it will display a low battery sign

Power Dissipation: Electricity cost during test<=800mw

Work environment: Teperature 0-40 ; relative humidity 30%-80%RH

Product size: 175(L)×110(W)×70(D)mm

Weight: Approx : 680g(include battery)
