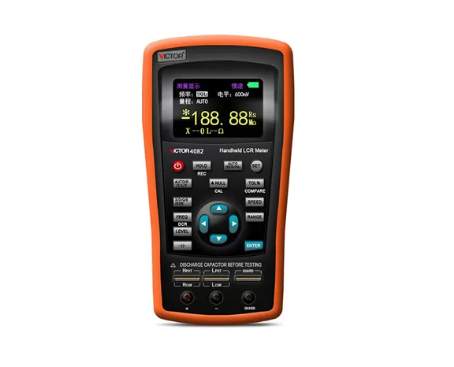

VICTOR 4082 LCR Meter (0-20mF, 0-2000H, 0-20MΩ, 0.2%)

Testing frequency:100Hz-100KHz adjustable, step from 1Hz

Basic accuracy:0.2%

Electrolytic capacitor mode:√

DCR mode:√

Bias Voltage:0-500mV can be adjustable, step from 1mV

Electric level:0-0.7 adjustable

Screen:2.8 inches TET LCD

Digits display:Main parameter: 5 digits; auxiliary parameter: 5 digits

Measuring parameters

Main parameter:L/C/R/Z

Auxiliary parameter:X/D/Q/θ/ESR

Measuring Range(L): 0-2000H

Measuring Range(C): 0-20mF

Measuring Range(R): 0-20MΩ

Measuring speed:1 time/s (slow), 2 times/s (moderate), 4 times/s (fast)

Calibration function:Open circuit calibration, short circuit calibration

Filtering function:Limit scope 1%~50% can be set; 1%, 5%, 10%, 20% are the fix points

errors measurement:is use for comparing the percent errors between components and nominal value, meanwhile display

others:Backlight luminance can be adjustable; USB device and auto power off can be set

Standard Accessories:Mini-USB cable; power adapter; short-circuit plate; plug made of red and black rubber; Lithium battery with large capacity
