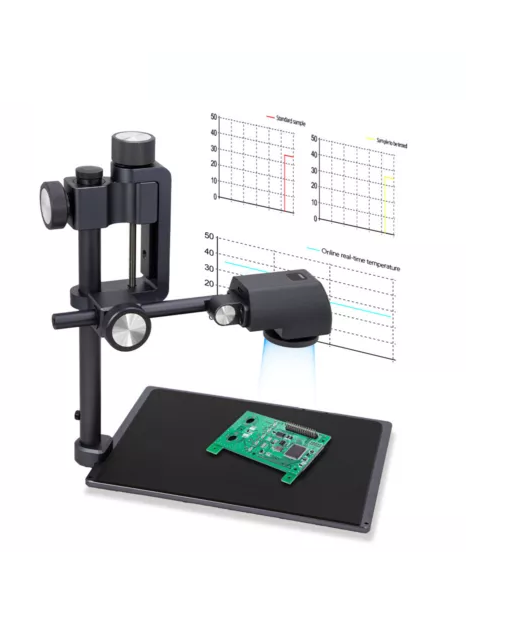

VICTOR 380J Circuit Board Thermal Analyzer (260*200, -10 ~120°C)

Lens parameter

Resolution:260*200

Frame rate:25Hz

NETD:70mK 25℃

Field of view:34.4 horizontal,25.8 vertical

Lens:4mm adjustable focus lens

Temperature range: -10~120℃

Precision:士5℃ or ±5%

Interface

Powered by:DC5V(USB Type-C)

Switch:

Power on in 1 second

power off in 3 seconds

Connection method:USB

Physical value

Size:Standard configuration: 220*172*241mm

Optional: split double, bottom plate: 346*220mm, extended support rod 341mm

Weight:

Standard configuration: 1.1kg

Optional accessories: 0.5kg

Surroundings

Operating temperature:-10℃~55℃

Working humidity:<95%

Software and hardware

System:Win10/Win7

Computer:i3 or higher processor 4G RAM

Renew:Connect to the Internet formanual or automatic updates
