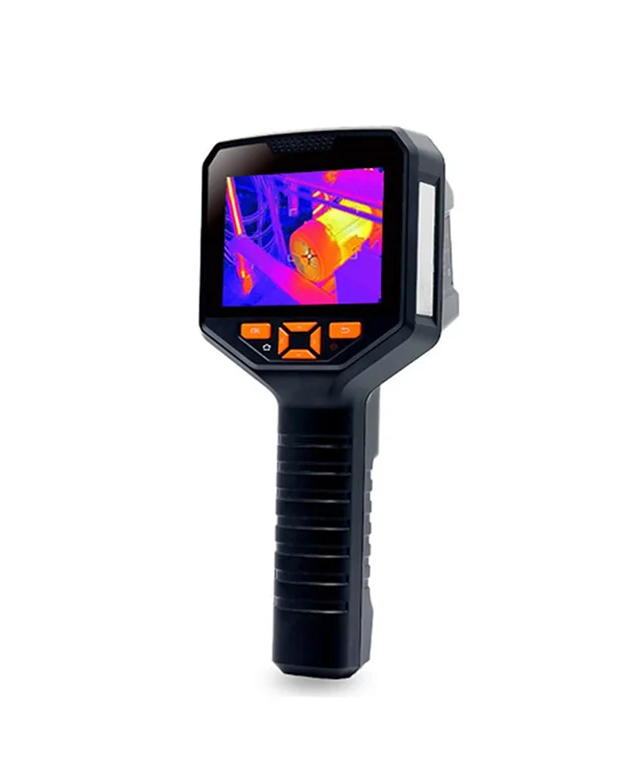

VICTOR 360S Thermal Imaging Camera (320x240, 8~14um)

Resolving power:320x240

Working band:8~14um

Frame rate:9Hz

NETD:70mK at 25℃

Field of view angle:Horizontal 344, vertical 25.8

Lens:6.5mm

Measuring range:Check temperature -10℃~45℃

Temperature measurement accuracy:2℃ or ±2%

Temperature measurement: Supports temperature measurement of the highest point, lowest point, and center point in the entire screen, as well as temperature measurement in the area

Color palette:Enhance iron red, white heat, black heat, iron red, rainbow, red heat, cold blue, etc

Resolving power:640x480

Frame rate:25Hz

LED fill light: √

Screen size:3.5 inches

Image mode:Edge fusion, overlay fusion, picture in picture, single infrared, single visible light

Language:Supports Simplified Chinese, Traditional Chinese, English, French, Spanish, Russian, Arabic, Japanese, and Korean

Working hours:5000mAH high capacity battery, can be used for approximately 4 hours at 25 ℃ environment

Charging:Built in battery, recommended to use a 2A or higher universal USB charger

WiFi:Supports data transfer for Android App and PC software

Working temperature: -20C~+60°C

Storage temperature:-40C~+85C

Waterproof and dustproof:IP54

Product size:230mm x 100mm x 90m

Capacity:Built in memory, approximately 6.6GB usable, capable of storing over 20000 images

Image storage mode:Three photo storage (infrared thermal imaging, visible light, and working state photos)

File format:TIFF format, supporting full range temperature analysis in the background

Data and charging interface:USB Type-C (supports charging and data transfer)

Analysis software:Computer analysis system can analyze and capture images

The mobile analysis system can analyze and capture images (currently only supports Android systems)
